TB7102F

Features: • Capable of high current drive (IOUT = maximum of 1 A), using only a few external components• High efficiency ( = 95% ) (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA).• Operating voltage (VIN) range: 2.7V to 5.5 V• High oscillation frequency of 1 MHz (typ.), making ...

product image

TB7102F Picture
See larger image
SeekIC No. : 004512765 Detail

TB7102F: Features: • Capable of high current drive (IOUT = maximum of 1 A), using only a few external components• High efficiency ( = 95% ) (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA).• Ope...

TB7102F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TB7102F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Capable of high current drive (IOUT = maximum of 1 A), using only a few external components
• High efficiency ( = 95% )
   (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA).
• Operating voltage (VIN) range: 2.7V to 5.5 V
• High oscillation frequency of 1 MHz (typ.), making it possible to use small external components.
• Uses internal phase compensation, achieving high efficiency using only a few external components.
• A small surface mount-type ceramic capacitor can be used as an output smoothing capacitor.
• Housed in a small surface-mount package (PS-8) with low thermal resistance.
• Under voltage lock out (U.V.L.O), Heat protection, and Over Current Protection is built into.

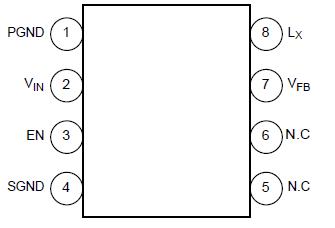

Pinout

Connection Diagram


Specifications

Characteristics Symbol
Rating
 Unit
Input voltage
VIN
-0.3~6
V
Switch pin voltage
VLX
-0.3~6
V
Feedback pin voltage
VFB
-0.3~6
V
Enable pin voltage
VEN
-0.3~6
V
Input-enable pin voltage
VEN-VIN
VEN-VIN<0.3
V
Power dissipation (Note 1)
PD
0.7
W
Operating temperature
Topr
-40~85
Operating junction temperature
Tjopr
-40~125
Channel temperature
Tch
150
Storage temperature
Tstg
-55~150

Note 2: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may significantly reduce the reliability of this product even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.

Please consult the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc) when designing the appropriate reliability while.


Description

The TB7102F is a single-chip step-down DC-DC converter IC. Equipped with a built-in high-speed and low on-resistance power  MOSFET, and utilizing a synchronous rectifier circuit, this IC can achieve high efficiency.
