TB6549P

` Power supply voltage: 30 V (max)
` Output current: 3.5 A (max)
` Low ON resistor: 0.5 (typ.)
` Capable of PWM controlling
` Standby system
` CW/CCW/short brake/stop function modes.
` Built-in overcurrent protection
` Built-in thermal shutdown circuit

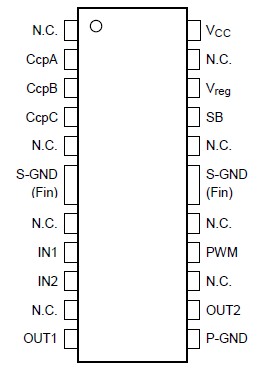

` Package: HSOP-20/DIP-16

Note 1: The maximum ratings must be observed strictly. Make sure that all the characteristics listed above never exceed the maximum ratings.

Note 2: This value is obtained by 115 * 75 * 1.6 mm PCB mounting occupied 30% of copper area.

Note 3: This value is obtained by 50 * 50 * 1.6 mm PCB mounting occupied 50% of copper area.

TB6549F/P is a full-bridge driver IC for DC motor which uses LDMOS for output transistors. High efficient drive is possible by MOS process with low ON-resistor and PWM drive system. Four modes such as CW, CCW, short brake, and stop can be chosen by IN1 and IN2.
