Features:

· 3-phase full-wave sensorless drive
· PWM control (PWM signal is supplied from external sources.)
· Turn-on signal output current: 20 mA
· Built-in protection against overcurrent
· Forward/reverse modes
· Built-in lead angle control function (0, 7.5, 15 and 30 degrees)
· Built-in lap turn-on function

Pinout

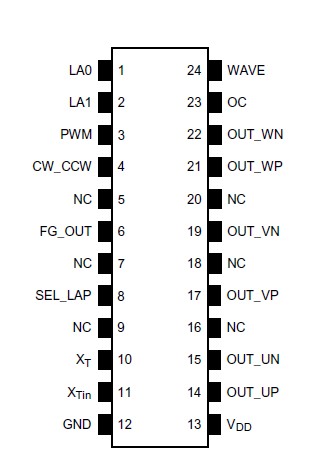

Connection Diagram

Specifications

Characteristics	Symbol	Rating	Unit
Power supply voltage	V_DD	5.5	V
Input voltage	V_in	−0.3 to V_DD+ 0.3	V
Turn-on signal output current	I_OUT	20	mA
Power dissipation	P_D	590	mW
Operating temperature	T_opr	−30 to 85
Storage temperature	T_stg	−55 to 150

Description

TB6548F is a 3-phase full-wave sensorless controller for brushless DC motors. It is capable of controlling voltage by PWM signal input. It is capable of PWM type sensorless driving when used conjunction with TA84005F
