Product Details

Description



Features:

·Output current capability and number of outputs: 90 mA × 16 outputs
·Constant current range: 2~80 mA
·Application output voltage:
0.7 V (output current 2~80 mA)
0.4 V (output current 2~40 mA)
·For anode-common LEDs
·Input signal voltage level: 3.3-V CMOS level (Schmitt trigger
input)
·Maximum output terminal voltage: 17 V
·Serial data transfer rate: 20 MHz (max, cascade connection)
·Operating temperature range Topr = −40~85°C
·Package:
Type N: SDIP24-P-300-1.78
Type F: SSOP24-P-300-1.00B
·Package and pin layout: Pin layout and functionality are similar to those of the TB62706. (Each characteristic
value is different.)
·Constant-current accuracy (all outputs on)

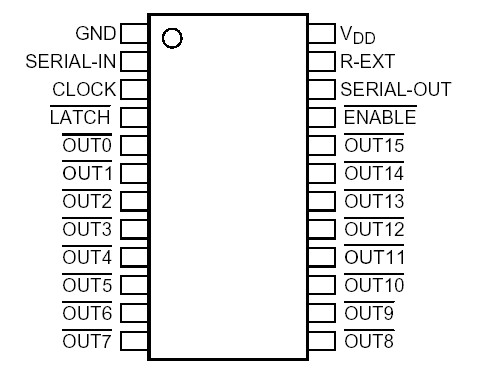

Pinout

Connection Diagram




Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage

Input voltage

Output current

Output voltage
VDD

VIN

IOUT

VOUT
6

-0.2~VDD + 0.2

+90

-0.2~17
V

V

mA/ch

V
Power
Dissipation
       (Note 3)		 N-type
(when not mounted)

N-type (on PCB)

F-type
(when not mounted)

F-type (On PCB)
Pd1


Pd2
1.25

1.78

0.83

1.00
W
Thermal
Resistance
       (Note 3)		 N-type
(when not mounted)

N-type (on PCB)

F-type
(when not mounted)

F-type (On PCB)
Rth (j-a) 1

Rth (j-a) 2
104

70

140

120
°C/W
Operating Temperature

Storage Temperature
Topr

Tstg
-40~85

-55~150
°C

°C

Note 3: N-Type: Powes dissipation is derated by 14.2 mW/°C if device is mounted on PCB and ambient temperature is above 25°C. F-Type: Powes dissipation is derated by 8.3 mW/°C if device is mounted on PCB and ambient temperature is above 25°C.

With device mounted on glass-epoxy PCB of less than 40% Cu and of dimensions 50 mm × 50 mm  × 1.6 mm.




Description

The TB62726 series is comprised of constant-current drivers designed for LEDs and LED displays. The output current value can be set using an external resistor. As a result, all outputs will have virtually the same current levels.

This driver incorporates a 16-bit constant-current output, a 16-bit shift register, a 16-bit latch and a gate circuit. These drivers have been designed using the Bi-CMOS process.
