Product Details

Description



Features:

` Constant Current Output : Can set up all output current with one resister for 5 to 90 mA.
` Maximum Clock Frequency : fCLK = 15 (MHz) (Cascade Connected Operate, Topr = 25)
`5 V C- MOS Compatible Input
` Package : SDIP24- P- 300- 1.78 (TB62706BNG) SSOP24- P- 300- 1.00B (TB62706BFG)


Pinout

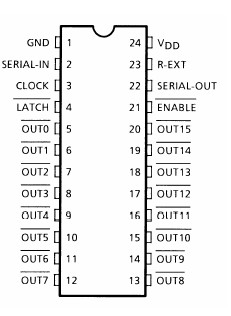

Connection Diagram


Specifications

CHARACTERISTIC
Symbol
RATING
Unit
Supply Voltage
VDD
0~7.0
V
Input Voltage
VIN
- 0.4~VDD + 0.4
V
Output Current
IOUT
90
mA
Output Voltage
VOUT
- 0.5~17.0
V
Clock Frequency
fCK
15
MHz
GND Terminal Current
IGND
1440
mA
Power Dissipation
PD
1.78 (BNG- type : ON PCB, Ta = 25 )
W
     1.00 (BFG- type : ON PCB, Ta = 25 )
Tharmal Resistance
Rth (j- a)
BNG : 70 (BN- type : ON PCB)
/W
            BFG : 120 (BF- type : ON PCB)
Operating Temperature
Topr
- 40~85
Storage temperature
Tstg
- 55~150
Note: BN- type : Ambient temperature delated above 25 in the proportion of 14.2 mW /
          BF- type : Ambient temperature delated above 25 in the proportion of 8.3 mW /


Description

The TB62706BNG, TB62706BFG are specifically designed for LED and LED DISPLAY constant current drivers.

This constant current output circuits are able to set up external resistor (IOUT = 5~90 mA). (Note)

These devices are monolithic integrated circuit designed to be used together with Bi- CMOS process.

The devices consist of 16bit shift register, latch, AND- GATE and Constant Current Drivers.

These products are Pb free.
