Features:

· Built−in selection circuit : parallel−in parallel−out (8 × 8) or serial−in parallel−out (1 × 64)
· CMOS compatible inputs
· Open−drain DMOS outputs
· Low steady−state power consumption
· Built−in mono stable multi−viblator for head protection
· Package : QFP100−P−1420C

Pinout

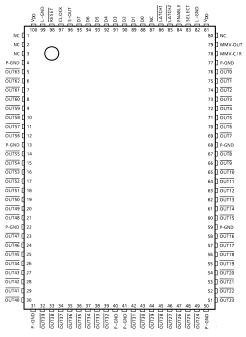

Connection Diagram

Specifications

Characteristics		Symbol	Rating	Unit
Supply voltage		V_DD	−0.3~7.0	V
Output Drain−Source Voltage		V_DS	−0.4~30	V
Output current		I_DS	130	mA / ch
Input Current		I_IN	±5	mA
Input voltage		V_IN	−0.3~V_DD ± 0.3	V
Power dissipation	Free Air	P_D	1.0	W
Power dissipation	(Note 1) PCB	P_D	1.3	W
Operating temperature		T_opr	−40~85
Storage temperature		T_stg	−55~150

Note 1: 60 * 60 * 1.6 mm Cu 24% Glass Epoxy PCB

Description

The TB62600FG is specifically designed for 64bit Thermal Head drivers. And this IC is monolithic integrated circuits designed to be used together with Bi−CMOS (DMOS) integrated circuit. The devices consist of a 64bit shift register, dual 64bit latches, and 64 output DMOS structures.

The suffix (G) appended to the part number represents a Lead(Pb)-Free product.
