TB62300FG

Features: • A single IC can drive two brushed DC motors.• Monolithic Bi-CMOS IC• Low ON-resistance (Ron) = 0.3 (Tj = 25°C at 2.0 A typ.)• Selectable current control: PWM current control using the PHASE pin or serial control• 5-bit DA converter for specifying current ...

product image

TB62300FG Picture
See larger image
SeekIC No. : 004512670 Detail

TB62300FG: Features: • A single IC can drive two brushed DC motors.• Monolithic Bi-CMOS IC• Low ON-resistance (Ron) = 0.3 (Tj = 25°C at 2.0 A typ.)• Selectable current control: PWM cur...

TB62300FG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TB62300FG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A single IC can drive two brushed DC motors.
• Monolithic Bi-CMOS IC
• Low ON-resistance (Ron) = 0.3 (Tj = 25°C at 2.0 A typ.)
• Selectable current control: PWM current control using the PHASE pin or serial control
• 5-bit DA converter for specifying current value and 2-bit DA converter for determining torque
• MIXED DECAY mode enables specification of current decay rate in four steps.
• Self-oscillation chopping frequency with external resistor and capacitor
• High-speed chopping at 100 kHz or higher
• ISD, TSD, and POR (VDD/VM) protection circuits
• Charge pump circuit (two external capacitors) for driving output
• 36-pin package: HSOP36 with heat sink
• Output voltage: 40 V (max)
• Output current: 2.5 A max (in steady-state phase) or 8 A max (pulsed output)
   Note: The values specified in this document are designed values, which are not guaranteed.


Pinout

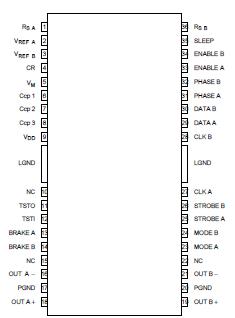

Connection Diagram


Specifications

Characteristics
Symbol
 Test Condition
Rating
Unit
Logic supply voltage
VDD
-
−0.4 to 7.0
V
Motor supply voltage
VM
-
40
V
Peak output current
(Note: preliminary specification)
IOUT(Peak)
tW 500 ns
8.0
A
Continuous output current
IOUT(Cont)
-
2.5
A
Logic input voltage
VIN
-
−0.5 to VDD
V
Current detection pin voltage
VRS
-
VM ± 4.5 V
V
Power dissipation
PD
IC alone
1.4
W
When mounted on a board
                               (Note)
3.2
W
Operating temperature
Topr
-
−40 to 85
Storage temperature
Tstg
-
−55 to 150
Junction temperature
Tj
-
150
Note: When Topr = 45°C, Tj = 150°C and ja = 32°C


Description

The TB62300FG is a dual brushed DC motors driver IC employing a chopper-based forward/reverse full-bridge mechanism. It controls two brushed DC motors at high precision. The motor supply voltage is up to 40 V and the VDD supply voltage is 5.0 V.
