TB62209FG

Features: • Bipolar stepping motor can be controlled by a single driver IC• Monolithic BiCD IC• Low ON-resistance of Ron = 0.5 (Tj = 25°C @1.0 A: typ.)• Built-in decoder and 4-bit DA converters for micro steps• Built-in ISD, TSD, VDD &VM power monitor (reset) cir...

product image

TB62209FG Picture
See larger image
SeekIC No. : 004512668 Detail

TB62209FG: Features: • Bipolar stepping motor can be controlled by a single driver IC• Monolithic BiCD IC• Low ON-resistance of Ron = 0.5 (Tj = 25°C @1.0 A: typ.)• Built-in decoder and...

TB62209FG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TB62209FG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bipolar stepping motor can be controlled by a single driver IC
• Monolithic BiCD IC
• Low ON-resistance of Ron = 0.5 (Tj = 25°C @1.0 A: typ.)
• Built-in decoder and 4-bit DA converters for micro steps
• Built-in ISD, TSD, VDD &VM power monitor (reset) circuit for protection
• Built-in charge pump circuit (two external capacitors)
• 36-pin power flat package (HSOP36-P-450-0.65)
• Output voltage: 40 V max
• Output current: 1.8 A/phase max
• 2-phase, 1-2 (type 2) phase, W1-2 phase, 2W1-2 phase, 4W1-2 phase, or motor lock mode can be selected.
• Built-in Mixed Decay mode enables specification of four-stage attenuation ratio.
• Chopping frequency can be set by external resistors and capacitors.
   High-speed chopping possible at 100 kHz or higher.
Note: When using the IC, pay attention to thermal conditions. These devices are easy damage by high static voltage. In regards to this, please handle with care.


Pinout

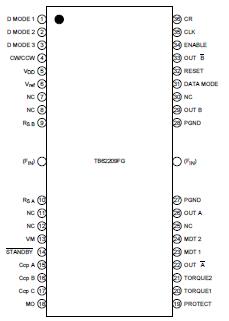

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Logic supply voltage
VDD
7
V
Motor supply voltage
VM
40
V
Output current        (Note 1)
IOUT
1.8
A/phase
Current detect pin voltage
VRS
VM ± 4.5 V
V
Charge pump pin maximum voltage(CCP1 Pin)
VH
VM + 7.0
V
Logic input voltage  (Note 2)
VIN
to VDD + 0.4
V
Power dissipation (Note 3)
PD
1.4
W
(Note 4)
3.0
Operating temperature
Topr
−40 to 85
Storage temperature
Tstg
−55 to 150
Junction temperature
Tj
150

Note 1: Perform thermal calculations for the maximum current value under normal conditions. Use the IC at 1.5 A or less per phase.
The current velue maybe controled according to the ambient temperature or board conditions.
Note 2: Input 7 V or less as VIN.
Note 3: Measured for the IC only. (Ta = 25°C)
Note 4: Measured when mounted on the board. (Ta = 25°C)
Ta: IC ambient temperature
Topr: IC ambient temperature when starting operation
Tj: IC chip temperature during operation Tj (max) is controlled by TSD (thermal shut down circuit)


Description

The TB62209FG is a stepping motor driver driven by chopper micro-step pseudo sine wave.

The TB62209FG integrates a decoder for CLK input in micro steps as a system to facilitate driving a two-phase stepping motor using micro-step pseudo sine waves. Micro-step pseudo sine waves are optimal for driving stepping motors with low-torque ripples and at low oscillation. Thus, the TB62209FG can easily drive stepping motors with low-torque ripples and at high efficiency.

Also, TB62209FG consists output steps by DMOS (Power MOS FET), and that makes possible to control the output power  dissipation much lower than ordinary IC with bipolar transistor output.

The IC supports Mixed Decay mode for switching the attenuation ratio at chopping. The switching time for the attenuation ratio can be switched in four stages according to the load.
