Features: ` Bipolar stepping motor can be controlled by a single driver IC
` Monolithic BiCD IC
` Low ON-resistance of Ron = 0.5 (Tj = 25 @1.0 A: typ.)
` Built-in decoder and 4-bit DA converters for micro steps
` Built-in ISD, TSD, VDD &VM power monitor (reset) circuit for protection
` Built-in charge pump circuit (two external capacitors)
` 36-pin power flat package (HSOP36-P-450-0.65)
` Output voltage: 40 V max
` Output current: 1.8 A/phase max
` 2-phase, 1-2 (type 2) phase, W1-2 phase, 2W1-2 phase, 4W1-2 phase, or motor lock mode can be selected.
` Built-in Mixed Decay mode enables specification of four-stage attenuation ratio.
` Chopping frequency can be set by external resistors and capacitors.
High-speed chopping possible at 100 kHz or higher.
Note: When using the IC, pay attention to thermal conditions. These devices are easy damage by high static voltage. In regards to this, please handle with care

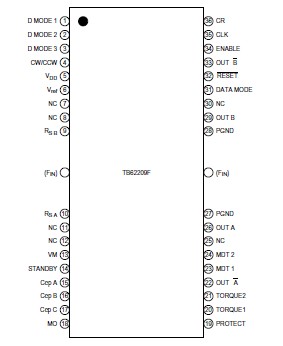

Pinout
Specifications
| Characteristics |
Symbol |
Rating |
Unit |
| Logic supply voltage |
VDD |
7 |
V |
| Motor supply voltage |
VM |
40 |
V |
| Output current (Note 1) |
IOUT |
1.8 |
A/phase |
| Current detect pin voltage |
VRS |
VM ± 4.5 V |
V |
Charge pump pin maximum voltage
(CCP1 Pin) |
VH |
VM + 7.0 |
V |
| Logic input voltage (Note 2) |
VIN |
to VDD + 0.4 |
V |
| Power dissipation |
(Note 3) |
PD |
1.4 |
W |
|
(Note 4) |
3.2 |
| Operating temperature |
Topr |
−40 to 85 |
|
| Storage temperature |
Tstg |
−55 to 150 |
|
| Junction temperature |
Tj |
150 |
|
Note 1: Perform thermal calculations for the maximum current value under normal conditions. Use the IC at 1.5 A or
less per phase.
The current velue maybe controled according to the ambient temperature or board conditions.
Note 2: Input 7 V or less as VIN.
Note 3: Measured for the IC only. (Ta = 25)
Note 4: Measured when mounted on the board. (Ta = 25)
Ta: IC ambient temperature
Topr: IC ambient temperature when starting operation
Tj: IC chip temperature during operation Tj (max) is controlled by TSD (thermal shut down circuit)
DescriptionThe TB62209F is a stepping motor driver driven by chopper micro-step pseudo sine wave.
The TB62209F integrates a decoder for CLK input in micro steps as a system to facilitate driving a two-phase stepping motor using micro-step pseudo sine waves. Micro-step pseudo sine waves are optimal for driving stepping motors with low-torque ripples and at low oscillation. Thus, the TB62209F can easily drive stepping motors with low-torque ripples and at high efficiency.
Also, TB62209F consists output steps by DMOS (Power MOS FET), and that makes possible to control the output power dissipation much lower than ordinary IC with bipolar transistor output.
The IC supports Mixed Decay mode for switching the attenuation ratio at chopping. The switching time for the attenuation ratio can be switched in four stages according to the load.
TB62209F Data Sheet
