TAF 2453

Features: · Supply voltage range between 3 V and 36 V· Low current consumption, 0.8 mA typ.· Extremely large control range· Low output saturation voltage, almost independent of load current· Output current up to 70 mA (max. 100 mA)· Output virtually short-circuit proof· Wide common-mode voltage ra...

product image

TAF 2453 Picture
See larger image
SeekIC No. : 004512370 Detail

TAF 2453: Features: · Supply voltage range between 3 V and 36 V· Low current consumption, 0.8 mA typ.· Extremely large control range· Low output saturation voltage, almost independent of load current· Output ...

TAF 2453 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TAF 2453
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supply voltage range between 3 V and 36 V
· Low current consumption, 0.8 mA typ.
· Extremely large control range
· Low output saturation voltage, almost independent of load current
· Output current up to 70 mA (max. 100 mA)
· Output virtually short-circuit proof
· Wide common-mode voltage range
· Wide operating temperature range (TAF 2453 G)
· Pin-compatible to TBB 1458 B
· The characteristic curves of the electric parameters correspond to those of type TAE 1453 G


Application

· Amplifier
· Level converter
· Driver
· Zero voltage switch
· Comparator

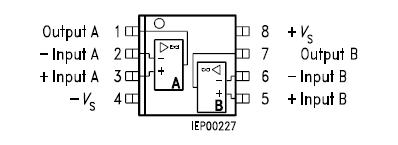

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Supply voltage
VS
± 18
V
Output current
IQ
100
mA
Differential input voltage
VID
± VS
V
Junction temperature
Tj
150
°C
Storage temperature range
Tstg
55 to 125
°C

Thermal resistance
system - air TAE 2453 G
Rth SA
170
K/W
Supply voltage
VS
± 2 to ± 18(± 1.5 V withslightlyincreasedoffset voltage)
V
Ambient temperature
TA
25 to 85
°C
