TA84002F

Features: ·Internal PWM current control·Wide range of operating supply voltage VM (motor) : 10 V to 30 V VCC (control) : 4.5 V to 5.5 V·Output current : 1.0 A (peak)·Multichip IC consisting of four P−channel MOSFETs and one main chip.·Full−step and half−step are available·Interna...

product image

TA84002F Picture
See larger image
SeekIC No. : 004512259 Detail

TA84002F: Features: ·Internal PWM current control·Wide range of operating supply voltage VM (motor) : 10 V to 30 V VCC (control) : 4.5 V to 5.5 V·Output current : 1.0 A (peak)·Multichip IC consisting of four ...

TA84002F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TA84002F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Internal PWM current control
·Wide range of operating supply voltage VM (motor) : 10 V to 30 V VCC (control) : 4.5 V to 5.5 V
·Output current : 1.0 A (peak)
·Multichip IC consisting of four P−channel MOSFETs and one main chip.
·Full−step and half−step are available
·Internal thermal−shutdown circuit
·Package : HSOP20−P−450−1.00


Pinout

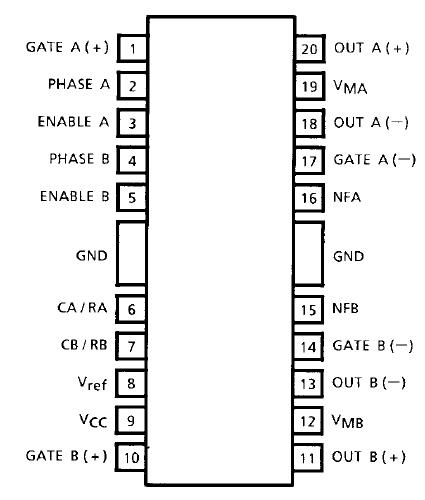

Connection Diagram


Specifications

Characteristics Symbol Rating Unit
Supply Voltage (Motor) VM 35 V
Supply voltage VCC 20 V
Output current IO 1.0 A / ch
Input Voltage VIN GND − 0.4 to VCC + 0.4 V V
Power dissipation PD 2.5 (Note) W
Operation temperature Topr −30 to 85 °C
Storage temperature Tstg −55 to 150 °C
Note: This rating is obtained by mounting on 50 × 50 × 1.6 mm PCB that occupied above 60% of copper.


Description

The TA84002F is designed to drive both windings of a two−phase bipolar setpping motor.
