TA58MS08F

• Built-in ON/OFF control function (active high)
• Maximum output current : 500 mA
• Output voltage : 5 / 6 / 8 / 9 / 12 V
• Output voltage accuracy : V_OUT ± 3% (@T_j = 25°C)
• Low quiescent current : 2.5 mA (Typ.) (@I_OUT = 0 A)
• Low standby current (output OFF mode): 1A (Typ.)
• Low-dropout voltage : 0.7 V (Max) (@IOUT = 500m A)
• Protection function : Over current protection/ thermal shutdown / Reverse connection of power supply / 60 V load dump

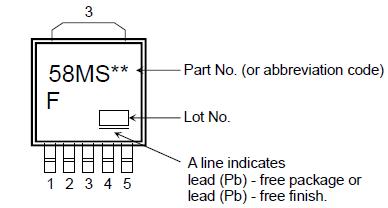

• Package type : Surface-mount New PW-Mold5pin

Note 3: Do not apply current and voltage (including reverse polarity) to any pin that is not specified.
Note 4: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
