Product Details

Description



Features:

`Class-T architecture
`Single Supply Operation
`"Audiophile" Quality Sound
`0.03% THD+N @ 9W, 4
`0.10% IHF-IM @ 1W, 4
`11W @ 4, 0.1% THD+N
`6W @ 8, 0.1% THD+N
`High Power
`15W @ 4, 10% THD+N
`10W @ 8, 10% THD+N
`High Efficiency
`81% @ 15W, 4
`90% @ 10W, 8
`Dynamic Range = 98 dB
`Mute and Sleep inputs
`Turn-on & turn-off pop suppression
`Over-current protection
`Over-temperature protection
`Bridged outputs
`36-pin Power SOP package


Application

·Computer/PC Multimedia
·DVD Players
·Cable Set-Top Products
·Televisions
·Video CD Players
·Battery Powered Systems


Pinout

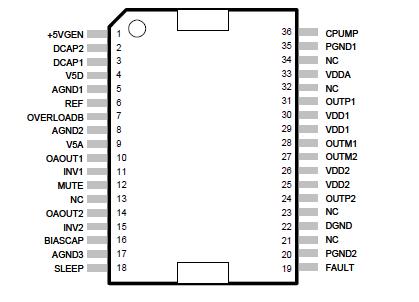

Connection Diagram


Specifications

SYMBOL

PARAMETER
Value

UNITS

VDD
Supply Voltage
16
V
V5
Input Section Supply Voltage
6.0
V
SLEEP
SLEEP Input Voltage
-0.3 to 6.0
V
MUTE
MUTE Input Voltage
-0.3 to V5+0.3
V
TSTORE
Storage Temperature Range
-40 to 150
°C
TA
Operating Free-air Temperature Range
0 to 70
°C

TJ
Junction Temperature
150
°C
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur.
Note 2: See Power Dissipation Derating in the Applications Information section.


Description

The TA2024B is a 15W/ch continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers.
