TA2024

Features: ` Class-T architecture ` Single Supply Operation ` Audiophile Quality Sound ` 0.04% THD+N @ 9W, 4 ` 0.18% IHF-IM @ 1W, 4 ` 6W @ 8, 0.1% THD+N ` 11W @ 4, 0.1% THD+N ` High Power ` 10W @ 8, 10% THD+N ` 15W @ 4, 10% THD+N ` High Efficiency ` 88% @ 10W, 8 ` 81% @ 15W, 4 ` Dynamic Range = 1...

product image

TA2024 Picture
See larger image
SeekIC No. : 004511777 Detail

TA2024: Features: ` Class-T architecture ` Single Supply Operation ` Audiophile Quality Sound ` 0.04% THD+N @ 9W, 4 ` 0.18% IHF-IM @ 1W, 4 ` 6W @ 8, 0.1% THD+N ` 11W @ 4, 0.1% THD+N ` High Power ` 10W @ 8...

TA2024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TA2024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Class-T architecture
` Single Supply Operation
` "Audiophile" Quality Sound
` 0.04% THD+N @ 9W, 4
` 0.18% IHF-IM @ 1W, 4
` 6W @ 8, 0.1% THD+N
` 11W @ 4, 0.1% THD+N
` High Power
` 10W @ 8, 10% THD+N
` 15W @ 4, 10% THD+N
` High Efficiency
` 88% @ 10W, 8
` 81% @ 15W, 4
` Dynamic Range = 102 dB
` Mute and Sleep inputs
` Turn-on & turn-off pop suppression
` Over-current protection
` Over-temperature protection
` Bridged outputs
` 36-pin Power SOP package





Application

· Computer/PC Multimedia
· DVD Players
· Cable Set-Top Products
· Televisions
· Video CD Players
· Battery Powered Systems





Pinout

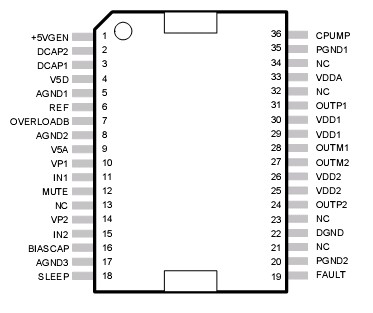

Connection Diagram


Specifications

SYMBOL
PARAMETER
Value
UNITS
VDD Supply Voltage
16
V
V5 Input Section Supply Voltage
6.0
V
SLEEP SLEEP Input Voltage
-0.3 to 6.0
V
MUTE MUTE Input Voltage
-0.3 to V5+0.3
V
ESDHBM ESD Susceptibility,                             All pins except pins 1,4
Human Body Model (Note2)                                     Pins 1, 4
2000
1000
V
V
ESDMM ESD Susceptibility, Machine Model (Note 3)
200
V
TSTORE Storage Temperature Range
-40 to 150
TA Operating Free-air Temperature Range
0 to 70
TJ Junction Temperature
150


Note 1 :  Absolute Maximum Ratings indicate limits beyond which damage to the device may occur.
Note 2 : Human Body Model, 100pF discharged through a 1.5k resistor.
Note 3 : Machine Model, 200pF discharged directly to each pin
Note 4 : See Power Dissipation Derating in the Applications Information section.





Description

The TA2024 is a 10W/ch continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing(TM) technology.  Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers.
