T8xC51SND1

Features: • MPEGI/II-Layer 3 Hardwired Decoder Stand-alone MP3 decoder 48, 44.1, 32, 24, 22.05, 16 KHz sampling freq. Separated digital volume control on left and right channels (software control using 31 steps) Bass, medium, and Treble Control (31 steps) Bass Boost sound effect. Ancil...

product image

T8xC51SND1 Picture
See larger image
SeekIC No. : 004511602 Detail

T8xC51SND1: Features: • MPEGI/II-Layer 3 Hardwired Decoder Stand-alone MP3 decoder 48, 44.1, 32, 24, 22.05, 16 KHz sampling freq. Separated digital volume control on left and right channels (software c...

T8xC51SND1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T8xC51SND1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• MPEGI/II-Layer 3 Hardwired Decoder
  Stand-alone MP3 decoder
  48, 44.1, 32, 24, 22.05, 16 KHz sampling freq.
  Separated digital volume control on left and right channels (software control using 31 steps)
  Bass, medium, and Treble Control (31 steps)
  Bass Boost sound effect.
  Ancillary data extraction
  "CRC Error" and "MPEG Frame Synchronization" indicators
• Programmable Audio Output for interfacing with common audio DAC available on the market
  PCM format compatible
  I2S format compatible
• 8-bit MCU C51 core based (FMAX= 20 MHz)
• 2304 bytes of Internal RAM
• 64 Kbytes of Code Memory
  FLASH: T89C51SND1, ROM: T83C51SND1
• 4 Kbytes of Boot Flash Memory (T89C51SND1)
  ISP: download from USB or UART to any external memory cards
• USB Rev 1.1 controller
  "Full speed" data transmission
• Built-in PLL
  MP3 Audio clocks
  USB clock
• MultiMediaCard Interface Compatibility
• Atmel DataFlash SPI Interface Compatibility
• IDE/ATAPI Interface
• 2 Channels 10-bit ADC, 8KHz (8 true bit)
  Battery voltage Monitoring
  Voice recording controlled by software
• Up to 44 bits of General Purpose I/Os for:
  4-bit interrupt keyboard port for a 4 x n matrix
  Smartmedia software interface
• Standard Two 16-bit Timers/Counters
• Hardware Watchdog Timer
• Standard Full Duplex UART with Baud Rate Generator
• 2-wire Master and Slave Modes Controller
• SPI Master and Slave Modes Controller
• Power Management
  Power-On reset
  Software programmable MCU clock
  Idle mode, Power-Down mode
• Operating conditions:
  3V, ±10%, 25 mA typical operating at 25°C
  -40°C to +85°C
• Packages
  TQFP80, PLCC84 (development board)
  Dice


Application

• MP3-Player
• PDA, Camera, Mobile Phone MP3
• Car Audio/Multimedia MP3
• Home Audio/Multimedia MP3


Pinout

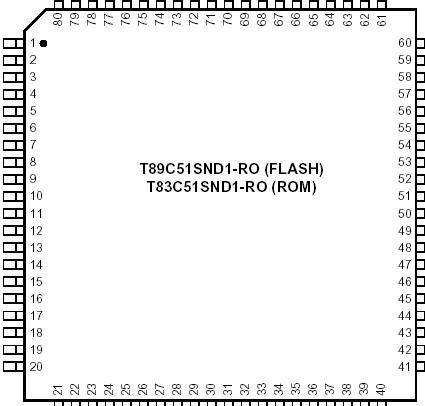

Connection Diagram


Specifications

Storage Temperature .................................................... -65 to +150°C
Voltage on any other Pin to VSS ...................................... -0.3 to +4.0 V
IOL per I/O Pin ................................................................................5 mA
Power Dissipation .............................................................................1 W




Description

The T8xC51SND1 product is a fully integrated stand-alone hardwired MPEGI/II-Layer 3 decoder with a C51 microcontroller core handling data flow and MP3-player control.

The T89C51SND1 includes 64 Kbytes of FLASH memory and allows In System Programming through an embedded 4 Kbytes of Boot FLASH Memory.

The T83C51SND1 includes 64 Kbytes of ROM memory.

The T8xC51SND1 includes 2304 bytes of RAM memory.

The T8xC51SND1 provides all necessary features for man machine interface like timers,keyboard port, serial or parallel interface (USB, 2-wire, SPI, IDE), ADC input, I2SIoutput, and all external memory interface (NAND or NOR FLASH, SmartMedia,MultiMedia).
