Product Details

Description



Features:

·Compatible with MCS-51
·Embedded 8K Bytes OTP ROM
·256 x 8-bit Internal RAM
·15 Programmable I/O Lines for 20-pin ackage
·2 16-bit Timer/Counter & 1 16-bit Timer
·2 External Interrupt Input
·Programmable Serial UART Interface
·Low Power Idle & Power-down Modes
· Watch-dog Timer
·On-chip Crystal & RC Oscillator (Selected y Bonding Option)
· Internal Power-on Reset and External Reset upported
·SOP20/DIP20 Package
·3.3V Operating Voltage

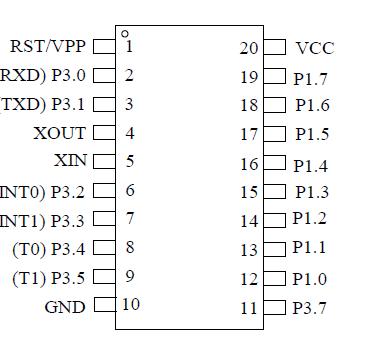

Pinout

  Connection Diagram


Description

The T81L0010A-AK is 8-bit microcontroller designed nd developed with low power and high speed MOS technology. It contains a 8K bytes OTP OM, a 256 × 8 RAM, 15 I/O lines, a watchdog imer, two 16-bit counter/timers, a seven source, wo-priority level nested interrupt structure, a ull duplex UART, and an on-chip oscillator and lock circuits.

In addition, the T81L0010A-AK has two selectable odes of power reduction-idle mode and ower-down mode. The idle mode freezes the PU while allowing the RAM, timers, serial port, nd interrupt system to continue functioning. The ower-down mode saves the RAM contents but reezes the oscillator, causing all other chip unctions to be inoperative.
