T81L0006A

Features:

· Compatible with MCS-51
· Embedded 8K Bytes OTP ROM
· 128 x 8-bit Internal RAM
· 15/19 Programmable I/O Lines for 20/24-pin Package
· Two 16-bit Timer/Counter & One 16-bit Timer
· Two External Interrupt Input (Only One Input for 20-pin Package)
· Two Channel PWM (Only One Channel PWM for 20-pin Package) Driving Capability up to 40 mA
· Embedded 1k bits EEPROM (for T81L0006B only)
· Programmable Serial UART Interface
· Low Power Idle & Power-down Modes
· Watch-dog Timer
· On-chip Crystal & RC Oscillator (Selected by Bonding Option)
· Internal Power-on Reset and External Reset Supported
· 8-Channel 8-bit A/D Converter
· SOP20/DIP20 & SOP24/DIP24 Package
· 3.3V Operating Voltage
· EEPORM Interface
· Low Voltage Reset


Application

•Meter
•Household Appliances Controller
•Handwriting Board
•Charger
•Sport Devices
•Other Controller (Automotive, Toy.)

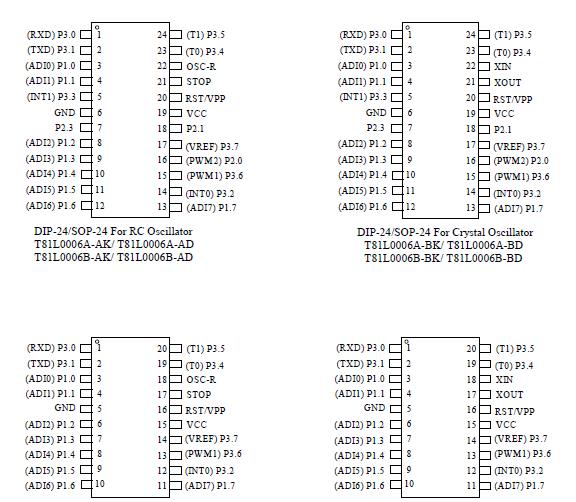

Pinout




Description

The T81L0006A/B is 8-bit microcontroller designed and developed with low power and high speed CMOS technology. It contains a 8K bytes OTP ROM, a 128 × 8 RAM, an 8-channels 8-bit A/D converter, 15/19 I/O lines, a watchdog timer, two 16-bit counter/timers, a seven source, two-priority level nested interrupt structure, two channel pulsed-width modulator (PWM), a full duplex UART, and an on-chip oscillator and clock circuits.

In addition, the T81L0006A/B has two selectable modes of power reduction-idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.
