T8100

Features: ` Complete solution for interfacing board-level circuitry to the H.100 telephony bus` H.100 compliant interface; all mandatory signals` Programmable connections to any of the 4096 time slots on the H.100 bus` Up to 16 local serial inputs and 16 local serial outputs, programmable for 2.04...

product image

T8100 Picture
See larger image
SeekIC No. : 004511522 Detail

T8100: Features: ` Complete solution for interfacing board-level circuitry to the H.100 telephony bus` H.100 compliant interface; all mandatory signals` Programmable connections to any of the 4096 time slo...

T8100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T8100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Complete solution for interfacing board-level circuitry to the H.100 telephony bus
` H.100 compliant interface; all mandatory signals
` Programmable connections to any of the 4096 time slots on the H.100 bus
` Up to 16 local serial inputs and 16 local serial outputs, programmable for 2.048 Mbits/s, 4.096 Mbits/s, and 8.192 Mbits/s operation per CHI specifications
` Programmable switching between local time slots, up to 1024 connections
` Programmable switching between local time slots and H.100 bus, up to 256 connections
` Choice of frame integrity or minimum latency switching on a per-time-slot basis
    - Frame integrity to ensure proper switching of wideband data
    - Minimum latency switching to reduce delay in voice channels
` On-chip phase-locked loop (PLL) for H.100, MVIP, or SC-Bus clock operation in master or slave clock modes
` Serial TDM bus rate and format conversion between most standard buses
` Optional 8-bit parallel input and/or 8-bit parallel output for local TDM interfaces
` High-performance microprocessor interface
    - Provides access to device configuration registers and to time-slot data
    - Supports both Motorola‡ nonmultiplexed and Intel § multiplexed/nonmultiplexed modes
` Two independently programmable groups of up to 12 framing signals each
` 3.3 V supply with 5 V tolerant inputs and TTL-compatible outputs
` Boundary-scan testing support
` 208-pin, plastic SQFP package
` 217-pin BGA package (industrial temperature range)


Pinout

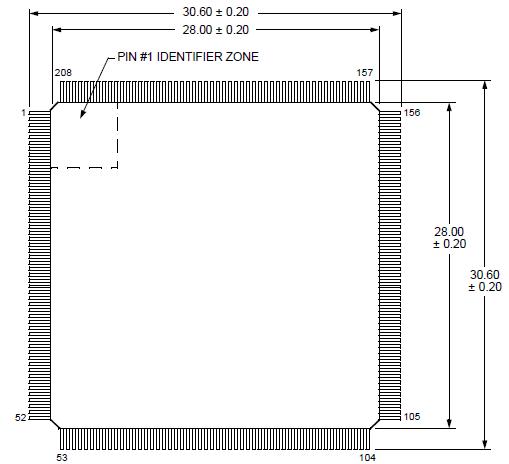

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Supply Voltage
VDD
-
3.6
V
XTALIN and XTALOUT Pins
-
VSS
VDD
V
Voltage Applied to I/O Pins
-
VSS 0.5
VDD+3.4
V

Operating Temperature
208-pin SQFP
-
0
70
°C
217-pin BGA
-
40
85
°C
Storage Temperature
Tstg
55
125
°C
