Features:

`On-chip display RAM capacity: 136 * 34 = 4624 bits
`Display RAM data
(1) Display data = 1........ LCD turns on.
(2) Display data = 0........ LCD turns off.
`1/34 duty cycle
`Word length of display data can be switched between 8-bit/word and 6-bit/word according to the character font.
`LCD driver outputs: 136 column driver outputs and 34 row driver outputs
`8-bit (68/80-series) parallel ot serial interface
`On-chip oscillator with one external resistor
`Low power consumption
`On-chip resistors to divide bias voltage, on-chip operational amplifier for LCD supply, on-chip DC-DC converter,on-chip contrast control circuit
`CMOS process
`Operating voltage: 2.7 V to 5.5 V
`Operating voltage for LCD drive signal: The following condition must be maintained: VDD − VEE1 16.0 V, VDD − VEE2 16.0 V, VEE1 VEE2
`Package: TCP (Tape Carrier Package)


Pinout

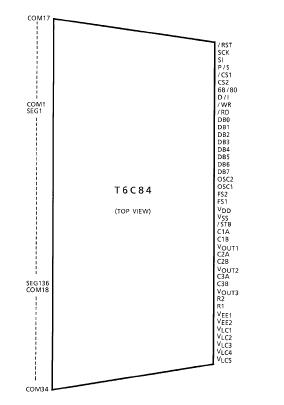

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply Voltage (1)
VDD(Note 1)
-0.3 to 7.0
V
Supply Voltage (2)
VLC1, 2, 3, 4, 5
VEE1, VEE2
(Note 3)
VDD − 18.0 to VDD + 0.3
V
Input Voltage
VIN (Note 1, 2)
-0.3 to VDD + 0.3
V
Operating Temperature
Topr
-20 to 75
°C
Storage Temperature
Tstg
-40 to 125
°C
Note1: Referenced to VSS = 0 V
Note2: Applies to all data bus pins and input pins except VEE1, VEE2, VLC1, VLC2, VLC3, VLC4 and VLC5.
Note3: Ensure that the following condition is always maintained.
VDD VLC1 VLC2 VLC3 VLC4 VLC5 VEE2 VEE1


Description

The T6C84 is a driver for a small-to-medium-sized dot matrix graphic LCD. It includes the functions of the T9841B (column driver) and the T9842B (row driver). It has an 8-bit interface circuit and a serial interface circuit. It generates all the timing signals for the display using an on-chip oscillator. T6C84 receives 8-bit data from an MPU, latches the data to an on-chip RAM, and displays the image on the LCD (the data in the display RAM correspond to the dots on the display).

The T6C84 has 136 column driver outputs and 34 row driver outputs enabling it to drive a 136-dot by 34-dot LCD. In addition, there are resistors to divide the bias voltage, a power supply op-amp, DC-DC converter (doubler, tripler, quadruplexer) and contrast control circuit enabling the LCD to be driven by a single power supply.
