Product Details

Description



Features:

` Dot matrix graphic LCD column driver with display RAM
` Display RAM capacity : 64 lines * 10 pages * 8 bits = 5120 bits (display area)
                                     1 line * 10 pages * 8 bits = 80 bits (flag area)
                                      Total = 5200 bits
` LCD drive outputs : 80
` Interface : 80-family MPU (8-bit)
` RAM data directly echoed to LCD
   (1) RAM bit data = 1 ..... ON
   (2) RAM bit data = 0 ..... OFF
` Duty: Can be controlled by the T6B66BFG.
` Display OFF functions
` Various functions
   X/Y-counter selection, Up/Down mode selection, X-address setting,
   Y-address setting, Display Start Line setting, "Status Read", display data read/write
` Low power consumption
` Logic power supply :    2.7 to 5.5 V
` CMOS Si-Gate process
` 100-pin-plastic flat package



Pinout

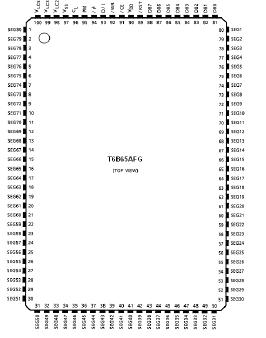

  Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply Voltage (1)
VDD
(Note 1)
−0.3 to 7.0
V
Supply Voltage (2)
VLC2, 3, 5
(Note 3)
VDD − 18.0 to VDD + 0.3
V
Input Voltage
VIN
(Note 1, 2)
−0.3 to VDD + 0.3
V
Operating Temperature
Topr
−20 to 75
Storage Temperature
Tstg
−55 to 125
Note 1: Referenced to VSS
Note 2: Applies to all data bus pins and input pins except VLC2, VLC3 and VLC5
Note 3: Ensure that the following condition is always maintained: VDD VLC2 VLC3 VLC5



Description

Manufactured using the CMOS process, the T6B65AFG is a column (segment) driver for small-to-medium-sized dot matrix graphic LCDs. Use of the T6B65AFG enables power dissipation to be reduced. It is designed to connect directly to an 8-bit microprocessor unit. The MPU can program all operating modes for the T6B65AFG asynchronously.

The T6B65AFG stores display data transferred from an MPU in its internal display RAM. The contents of the internal display RAM correspond to the image on the LCD screen and are used to generate the LCD drive signal.

Three T6B65AFGs can be combined with a Toshiba T6B66BFG row (common) driver to drive a 240-dot by 65-dot LCD screen. The T6B65AFG is lead (Pb)-free product.
