Product Details

Description



Features:

· On-chip display RAM capacity : 120 × 64 = 7.5 kbits
· Display RAM data
(1) Display data = 1.................. LCD turns on.
(2) Display data = 0.................. LCD turns off.
· 1/64 duty cycle
· Word length of display data can be switched between eight bits and six bits according to the character font.
· LCD driver outputs : 120 column driver outputs and 64 row driver outputs
· Interface with 80-series MPU
· On-chip oscillator with one external resistor
· Low power consumption
· On-chip resistors to divide bias voltage, on-chip operational amplifier for LCD supply, on-chip DC-DC converter, on-chip contrast control circuit
· CMOS process
· Operating voltage : 4.5 to 5.5 V
· Operating voltage for LCD drive signal : VDD − VEE = 16.0 V (max)
· Package : TCP (tape carrier package)


Pinout

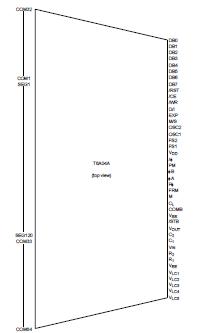

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage (1)
VDD
(Note 10)
0.3 to 7.0
V
Supply voltage (2)
VLC1, 2, 3, 4, 5
VEE
(Note 12)
VDD 18.0 to VDD 0.3
V
Input voltage
VIN
(Note 10, 11)
0.3 to VDD 0.3
V
Operating temperature
Topr
20 to 75
°C
Storage temperature
Tstg
55 to 25
°C
Note 10: Referenced to VSS  0 V
Note 11: Applies to all data bus pins and input pins except VEE, VLC1, VLC2, VLC3, VLC4 and VLC5.
Note 12: Ensure that the following condition is always maintained.


Description

The T6A04A is a driver for a small-to-medium-sized scale dot matrix graphic LCD. It includes the functions of the T9841B (column driver) and the T9842B (row driver). It has an 8-bit interface circuit and can be operated with an 80-Series MPU. It generates all the timing signals for the display with an on-chip oscillator. It receives 8-bit data from an MPU, latches the data to an on-chip RAM, and displays the image on the LCD (the data in the display RAM correspond to the dots on the display). The T6A04A has 120 column driver outputs and 64 row driver outputs enabling it to drive a 120-dot by 64-dot LCD. In addition, there are resistors to divide the bias voltage, a power supply op-amp, DC-DC converter (+5 V −5 V) and contrast control circuit, enabling the LCD to be driven by a single power supply. The device can be connected to another T6A04A to drive a 240-dot by 64-dot LCD.
