T63H0001A

The T63H0001A series are protection ICs for over-charge/discharge of rechargeable one-cell Lithium-ion (Li+) batteries by CMOS process. The T63H0001A series can detect  over-charge/discharge of Li+ one-cell and excess load current, further include a short circuit protector for preventing large external short circuit current.

Each of these T63H0001As is composed of three voltage detectors, a reference unit, a hysteresis circuit, and a short circuit protector. When charging voltage crosses the detector threshold from a low value to a value higher than Vdet1, the output of Cout pin, the output of over-charge detector/VD1, switches to low level. . charger's negative pin level. After detecting over-charge the VD1 can be reset and the output of Cout pin becomes "H" when the VDD voltage is coming down to a level lower than "Vdet1-Vhys1", or when a charger is disconnected from the battery pack while the VDD level is in between "Vdet1" and "Vdet1-Vhys1" in the T63H0001A version. The output of Dout pin, the output of over-discharge detector/VD2, switches to "Low" after internally fixed delay time passed, when discharging voltage crosses the detector threshold from a high value to a value lower than Vdet2. An excess load current can be sensed and cut off after internally fixed delay time passed through the built in excess current detector, VD3, with Dout being enabled to low level. Once after detecting excess current, the VD3 is released and Dout level switches to "H" by detaching a battery pack from a load system.

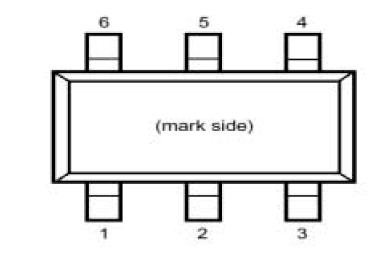

Further, short circuit protector makes Dout level to "L" immediately with external short circuit current and removing external short circuit leads Dout level to "H". After detecting over-discharge, supply current of T63H0001A will be kept extremely "L' by halting some internal circuits operation. The output delay of over-charge detectors can be set by connecting external capacitors. Output type of Cout and Dout are CMOS. SOT-23-6 is available.
