Product Details

Description



Features:

` Fully integrated LC-VCO and PLL loop filter
` Very high sensitivity with power matched LNA
` 30 dB image rejection
` High system IIP3 (16 dBm), system 1-dB compression point (25 dBm)
` High large-signal capability at GSM band (blocking 30 dBm @ + 20 MHz, IIP3 = 12 dBm @ + 20 MHz)
` 5 V to 20 V automotive compatible data interface
` Data clock available for Manchester- and Bi-phasecoded signals
` Programmable digital noise suppresion
` Receiving bandwidth BIF = 600 kHz for low cost 90-ppm crystals
` Low power consumption due to configurable polling
` Temperature range 40°C to 105°C
` ESD protection 2 kV HBM, all pins
` Communication to r C possible via a single bi-directional data line
` Low-cost solution due to high integration level with minimum external circuitry requirements

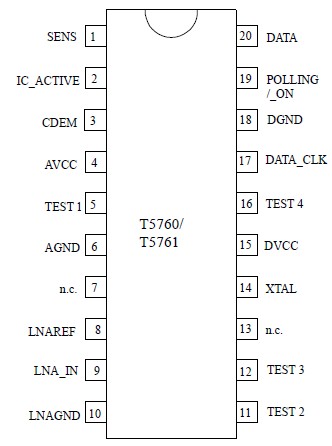

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min.
Max.
Unit
Supply voltage
VS
6
V
Power dissipation
Ptot
1000
mW
Junction temperature
Tj
150
°C
Storage temperature
Tstg
55
+125
°C
Ambient temperature
Tamb
40
+105
°C
Maximum input level, input matched to 50
Pin_max
10
dBm



Description

The T5760/T5761 is a multi-chip PLL receiver device supplied in an SO20 package. It has been especially developed for the demands of RF low-cost data transmission systems with data rates from 1 kBaud to 10 kBaud in Manchester or Bi-phase code. The receiver is well suited to operate with the Atmel Wireless & Microcontrollers' PLL RF transmitter T5750. Its main applications are in the areas of telemetering, security technology and keyless- entry systems. T5760 can be used in the frequency receiving range of f0 = 868 to 870 MHz or f0 = 902 to 928 MHz for ASK or FSK data transmission. All the statements made below refer to 868.3 MHz and 915.0 MHz applications.
