T5743

Features: • Two Different IF Receiving Bandwidth Versions Are Available (BIF = 300 kHz or 600 kHz)• 5 V to 20 V Automotive Compatible Data Interface• IC Condition Indicator, Sleep or Active Mode• Low Power Consumption Due to Configurable Self Polling with a Programmable Tim...

product image

T5743 Picture
SeekIC No. : 004511312 Detail

T5743: Features: • Two Different IF Receiving Bandwidth Versions Are Available (BIF = 300 kHz or 600 kHz)• 5 V to 20 V Automotive Compatible Data Interface• IC Condition Indicator, Sleep ...

floor Price/Ceiling Price

Part Number:
T5743
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two Different IF Receiving Bandwidth Versions Are Available (BIF = 300 kHz or 600 kHz)
• 5 V to 20 V Automotive Compatible Data Interface
• IC Condition Indicator, Sleep or Active Mode
• Low Power Consumption Due to Configurable Self Polling with a Programmable Timeframe Check
• High Sensitivity, Especially at Low Data Rates
• Data Clock Available for Manchester- and Bi-phase-coded Signals
• Minimal External Circuitry Requirements, no RF Components on the PC Board Except Matching to the Receiver Antenna
• Sensitivity Reduction Possible Even While Receiving
• Fully Integrated VCO
• SO20 Package
• Supply Voltage 4.5 V to 5.5 V, Operating Temperature Range -40°C to +105°C
• Single-ended RF Input for Easy Adaptation to /4 Antenna or Printed Antenna on PCB
• Low-cost Solution Due to High Integration Level
• ESD Protection According to MIL-STD. 883 (4KV HBM)
• High Image Frequency Suppression Due to 1 MHz IF in Conjunction with a SAW Frontend Filter. Up to 40 dB is Thereby Achievable With State-of-the-art SAWs.
• Communication to Microcontroller Possible Via a Single, Bi-directional Data Line
• Power Management (Polling) Is Also Possible by Means of a Separate Pin Via the Microcontroller
• Programmable Digital Noise Suppression




Pinout

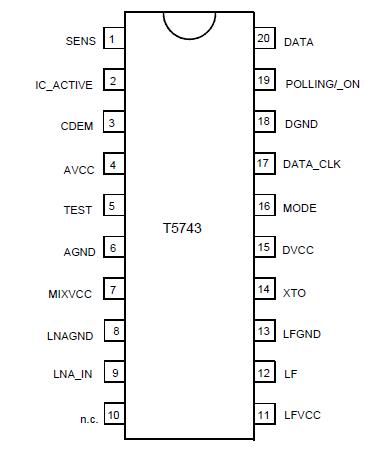

  Connection Diagram


Specifications

Parameters
Symbol
Min.
Max.
Unit
Supply voltage
VS
6
V
Power dissipation
Ptot
1000
mW
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55
+125
°C
Ambient temperature
Tamb
-40
+105
°C
Maximum input level, input matched to 50
Pin_max
10
dBm



Description

The T5743 is a multi-chip PLL receiver device supplied in an SO20 package. It has been especially developed for the demands of RF low-cost data transmission systems with data rates from 1 kBaud to 10 kBaud in Manchester or Bi-phase code. The receiver is well suited to operate with Atmel's PLL RF transmitter U2741B. Its main applications are in the areas of telemetering, security technology and keyless-entry systems. T5743 can be used in the frequency receiving range of f0 = 300 MHz to 450 MHz for ASK or FSK data transmission. All the statements made below refer to 433.92 MHz and 315 MHz applications.
