T44C080-V

Features: Extended temperature range for very high tempera-ture up to 125C Very low power consumption in active, power-downand sleep mode 2-Kbyte ROM, 256 x 4-bit RAM 12 bidirectional I/Os Up to 6 external / internal interrupt sources Multifunction timer/counter Programmable system-clock with pr...

product image

T44C080-V Picture
See larger image
SeekIC No. : 004511162 Detail

T44C080-V: Features: Extended temperature range for very high tempera-ture up to 125C Very low power consumption in active, power-downand sleep mode 2-Kbyte ROM, 256 x 4-bit RAM 12 bidirectional I/Os Up to 6...

T44C080-V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T44C080-V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Extended temperature range for very high tempera-ture up to 125C
  Very low power consumption in active, power-downand sleep mode
  2-Kbyte ROM, 256 x 4-bit RAM
  12 bidirectional I/Os
  Up to 6 external / internal interrupt sources
   Multifunction timer/counter
  Programmable system-clock with prescaler and fivedifferent clock sources
  Wide supply voltage range (1.8 to 6.5 V)
  Very low sleep current (< 1 µA)
  Synchronous serial interface (2-wire, I2C, 3-wire)
  Watchdog, POR and brown-out function
  Voltage monitoring incl. Lo_BAT detect
  Flash controller T48C893 available (SSO20)


Pinout

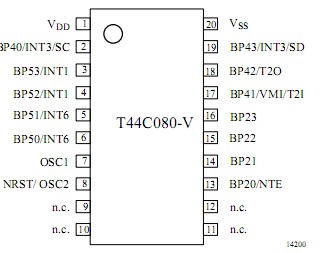

Connection Diagram


Specifications

Parameter

Symbol

Value

Unit

Supply voltage

VDD

0.3 to + 6.5

V

Input voltage (on any pin)

VIN

VSS 0.3 VIN VDD +0.3

V

Output short circuit duration

tshort

indefinite

s

Operating temperature range

Tamb

40 to +85

°C

Storage temperature range

Tstg

40 to +130

°C

Thermal resistance (SSO20)

RthJA

140

K/W

Soldering temperature (t 10 s)

Tsld

260

°C
