T436416C

Features: • 3.3V power supply• Four banks operation• LVTTL compatible with multiplexed address• All inputs are sampled at the positive going edge of system clock• DQM for masking• Auto refresh and self refresh• 64ms refresh period• 15.6 us refresh in...

product image

T436416C Picture
See larger image
SeekIC No. : 004511159 Detail

T436416C: Features: • 3.3V power supply• Four banks operation• LVTTL compatible with multiplexed address• All inputs are sampled at the positive going edge of system clock• DQM f...

T436416C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T436416C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3V power supply
• Four banks operation
• LVTTL compatible with multiplexed address
• All inputs are sampled at the positive going edge of system clock
• DQM for masking
• Auto refresh and self refresh
• 64ms refresh period
• 15.6 us refresh interval.
• MRS cycle with address key programs
- CAS Latency ( 2 & 3 )
- Burst Length ( 1 , 2 , 4 , 8 & full page)
- Burst Type (Sequential & Interleave)
• Available package type in 54 pin TSOP(II)
• Operating temperature : 0 ~ +70 °C


Pinout

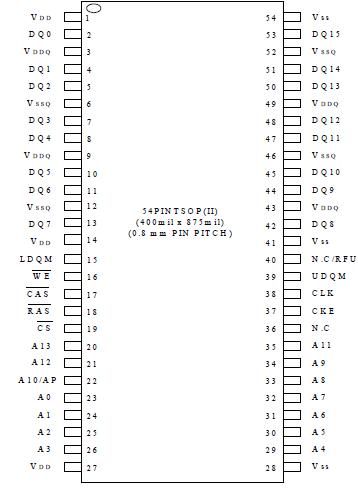

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on Any Pin Relative To Vss
VIN,VOUT
-1.0 to 4.6
V
Supply Voltage Relative To Vss
VDD,VDDQ
-1.0 to 4.6
V
Short circuit Output Current
Iout
50
mA
Power Dissipation
PD
1
W
Operating Temperature
TOPR
0 to +70
Storage Temperature
Tstg
-55 to 150


Note : Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.




Description

The T436416C is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits , fabricated with high performance CMOS technology .

Synchronous T436416C design allows precise cycle control with the use of system clock I/O transactions of T436416C are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
