Product Details

Description



Features:

• Access time : 45/55/70/100 ns
• Low-power consumption
- Active: 5mA (ICC1)
- Stand-by: (CMOS input/output)
Max.. 15 uA for 55/70/100ns
Max.. 40 uA for 45ns
• Equal access and cycle time
• Single +2.7V to 3.6V Power Supply
• TTL compatible , Tri-state output
• Common I/O capability
• Automatic power-down when deselected
• Available in 44-PIN TSOP-II and 48-pin CSP packages
• Operating temperature :
- -10 ~ +70 °C
- -40 ~ +85 °C



Pinout

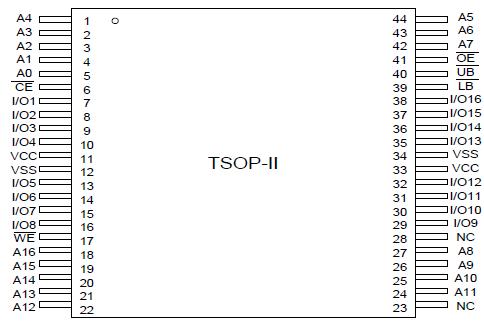

  Connection Diagram


Specifications

PARAMETER
SYM
MIN.
MAX.
UNIT
Voltage on Any Pin Relative to VSS
VR
-0.2
+3.6 V
V
Power Dissipation
PD
-
1.0
W
Storage Temperature
TSTG
-55
+150
°C
Temperature Under Bias
IBIAS
-10 / -40
+70 / +85
°C


*Note: Stresses greater than those listed above Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and function operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.





Description

The T15V2M16B is a very Low Power CMOS Static RAM organized as 131,072 words by 16 bits . This device is fabricated by high performance CMOS technology. It can be operated under wide power supply voltage range from +2.7V to +3.6V.

The T15V2M16B inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Data retention is guaranteed at a power supply voltage as low as 2V.
