Product Details

Description



Features:

• Fast access time : 55/70/100 ns
• Single +2.4 to 3.6V Power Supply
• Low power supply current :
- Operating :30mA(max)
- Standby : 10uA
• TTL compatible , Tri-state output
• Common I/O capability
• Automatic power-down when deselected
• Full static operation, no clock or refresh required
• Available packages type :
- 44-PIN SOJ (400 mil)
- 44-PIN TSOP-II (400 mil)
- 48-PIN CSP
• Operating temperature :
- 0 ~ +70 °C
- -40 ~ +85 °C


Pinout

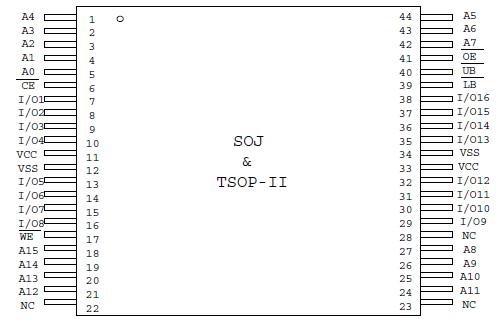

Connection Diagram


Specifications

PARAMETER
SYM
MIN.
MAX.
UNIT
Voltage on Any Pin Relative to VSS
VR
-0.5
+4.6 V
V
Power Dissipation
PD
-
1.0
W
Storage Temperature
TSTG
-55
+150
°C
Temperature Under Bias
IBIAS
0/-40
+70 / +85
°C


*Note: Stresses greater than those listed above Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and function operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The T15N1M16A is a low power CMOS Static RAM organized as 65,536 words by 16 bits. T15N1M16A operates on a wide voltage range from +2.4 to 3.6V power supply, Fabricated using high performance CMOS technology, Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Data retention is guaranteed at a power supply voltage as low as 1.5V.
