Product Details

Description

Pinout

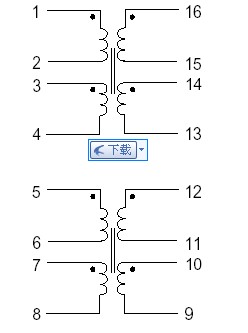

Connection Diagram

Specifications

PARAMETER	MIN.	MAX.	UNITS
Open Circuit Inductance 1-4 ⁽¹⁾ 5-8⁽²⁾	22		mHy
Leakage Inductance 1-4⁽¹⁾ Short 16-13⁽³⁾ 5-8⁽²⁾ Short 12-9⁽⁴⁾		15 5	Hy Hy
Interwinding Capacitance (C_W/W) 1-4 ⁽¹⁾ & 16-13 ⁽³⁾ 5-8⁽²⁾ & 12-9⁽⁴⁾		100 100	pF pF
Distributed Parallel Capacitance 1-4 ⁽¹⁾ 5-8 ⁽²⁾		80 40	pF pF
Primary DC Resistance: 1-4⁽¹⁾ ; 5-8⁽²⁾	2.04	2.76	ohms
Secondary DC Resistance: 16-13 ⁽³⁾	3.40	4.60	ohms
Secondary DC Resistance: 12-9 (4)	2.04	2.76	ohms
Isolation (HI-POT)	4000		VRMS
