SiP41101

Features: ` 5-V Gate Drive` Undervoltage Lockout` Sub 1- Gate Drivers` Internal Bootstrap Diode` Drive MOSFETs In 4.5- to 30-V Systems` Switching Frequency: 250 kHz to 1 MHz` Synchronous Enable/Disable OptionApplication· Multi-Phase DC/DC· High Current Synchronous Buck Converters· High Frequency S...

product image

SiP41101 Picture
See larger image
SeekIC No. : 004491464 Detail

SiP41101: Features: ` 5-V Gate Drive` Undervoltage Lockout` Sub 1- Gate Drivers` Internal Bootstrap Diode` Drive MOSFETs In 4.5- to 30-V Systems` Switching Frequency: 250 kHz to 1 MHz` Synchronous Enable/Disa...

SiP41101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SiP41101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 5-V Gate Drive
` Undervoltage Lockout
` Sub 1- Gate Drivers
` Internal Bootstrap Diode
` Drive MOSFETs In 4.5- to 30-V Systems
` Switching Frequency: 250 kHz to 1 MHz
` Synchronous Enable/Disable Option




Application

· Multi-Phase DC/DC
· High Current Synchronous Buck Converters
· High Frequency Synchronous Buck Converters
· Asynchronous-to-Synchronous Adaptations
· Mobile Computer DC/DC Converters
· Desktop Computer DC/DC Converters

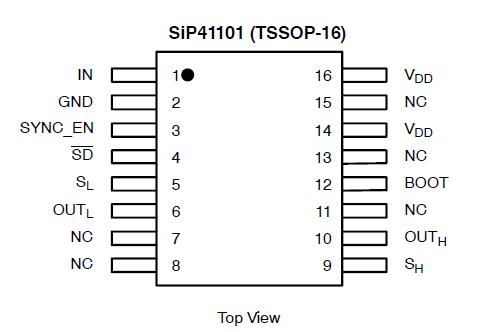

Pinout

Connection Diagram




Specifications

VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to VDD + 0.3 V
VSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
VBOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. VSH + 7 V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40 to 150
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Power Dissipationa
TSSOP-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .925 mW
Thermal Impedance (JA)a
TSSOP-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135/W

Notes
a. Device mounted with all leads soldered or welded to PC board.
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The SiP41101 is a high speed half-bridge driver, with make-before-break, for use in high frequency, high current multiphase dc-to-dc power supplies for supply voltages as high as 30 V. It is designed to operate at frequencies up to 1 MHz. The high-side driver is bootstrapped to allow driving an n-channel high-side MOSFET. The bootstrap diode is internal. The output drivers provide currents up to 4 A, allowing use of low rDS(on) power MOSFETs.

The SiP41101 comes with internal break-before-make circuitry to prevent shoot-through current in the external MOSFETs. TheSD control pin is provided to enable the drivers. A Synchronous Enable control pin is provided to disable the the low-side or synchronous MOSFET to maximize efficiency under low output current conditions.

The SiP41101 is available in a 16-pin TSSOP package for operation over the industrial temperature range of -40 to 85 .
