SI9976DY

Power Driver ICs Half Bridge Driver

product image

SI9976DY Picture
SeekIC No. : 00538500 Detail

SI9976DY: Power Driver ICs Half Bridge Driver

floor Price/Ceiling Price

US $ 1.46~1.66 / Piece | Get Latest Price
Part Number:
SI9976DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 0~335
  • 335~500
  • 500~1000
  • Unit Price
  • $1.66
  • $1.61
  • $1.46
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : High Side/Low Side Rise Time : 110 ns
Fall Time : 50 ns Supply Voltage - Min : 20 V
Supply Current : 10 mA Maximum Power Dissipation : 1000 mW
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SO-14 Packaging : Tube

Description

Product :
Supply Voltage - Max :
Mounting Style : SMD/SMT
Packaging : Tube
Type : High Side/Low Side
Fall Time : 50 ns
Maximum Operating Temperature : + 85 C
Supply Current : 10 mA
Maximum Power Dissipation : 1000 mW
Package / Case : SO-14
Rise Time : 110 ns
Supply Voltage - Min : 20 V


Features:

• Single Input for High-Side and Low-Side MOSFETs
• 20- to 40-V Supply
• Static (dc) Operation
• Cross-Conduction Protected
• Undervoltage Lockout
• ESD and Short Circuit Protected
• Fault Feedback



Application

• Power Supplies
• Motor Drives
• Office Automation
• Computer Peripherals
• Industrial Controllers
• Robotics
• Medical Equipment



Pinout

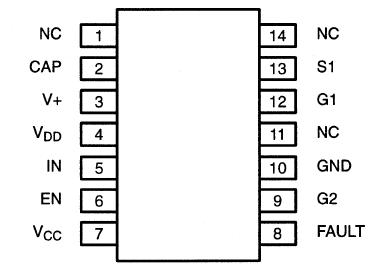

  Connection Diagram


Specifications

Voltage on IN, EN (pins 5, 6)
with respect to ground . . . . . . . . . . . . . . . . . . . . . -0.3 to VDD +0.3 V
Voltage on VCC (pin 7) . . . . . . . . . . . . . .  . . . . . . . . . . . -0.3 to +18 V
Voltage on V+, S1 (pins 3, 13) . . . . . . . . . . . . .. . . . . . . -0.3 to +50 V
Voltage on CAP, G1a (pins 2, 12) . . . . . . . . . . . . . .  . . . -0.3 to +60 V
Peak Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .0.5 A
Operating Temperature (TA) . . . . . . . . . . . . . . . . . . . . . . -40 to 85°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .  -50 to 150°C
Maximum Junction Temperature (TJ) . . . . . . . . . . . . . . .  . . . . . 125°C
Power Dissipationb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 1 W
QJAc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 100°C/W
Notes
a. Internally generated voltage for reference only.
b. Derate 10 mW/°C above 25°C.
c. PC board mounted with no forced air flow.




Description

The Si9976DY is an integrated driver for an n-channel MOSFET half-bridge. Schmitt trigger inputs provide logic signal compatibility and hysteresis for increased noise immunity. An internal low-voltage regulator allows the device to be powered directly from a system supply of 20 to 40 V. Both half-bridge n-channel gates are driven directly with low-impedance outputs. Addition of one external capacitor allows an internal circuit to level shift both the power supply and logic signal for the half-bridge high-side n-channel gate drive. An internal charge pump replaces leakage current lost in the high-side driver circuit to provide "static" (dc) operation in any output condition. Protection features include an undervoltage lockout, cross-conduction prevention logic, and a short circuit monitor. The Si9976DY is available in the 14-pin SOIC (surface mount) package, specified to operate over the industrial (-40 to 85°C) temperature range.
