SI9933ADY

Maximum Operating Temperature : + 175 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Drain-Source Breakdown Voltage : - 20 V
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : - 3.4 A
Resistance Drain-Source RDS (on) : 44 m Ohms

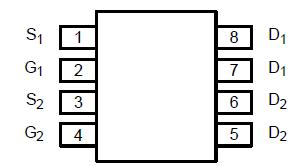

Pinout




Specifications

Parameter		Symbol	Limit	Unit
Drain-Source Voltage		VDS	-20	V
Gate-Source Voltage		VGS	±12
Continuous Drain Current (TJ = 175°C)a	TA = 25°C	ID	±3.4	A
	TA = 70°C		±2.7
Pulsed Drain Current(10 s Pulse Width)		IDM	±16
Continuous Source Current (Diode Conduction)a		IS	-2.0
Maximum Power DissipationaMOSFET)a, b	TA = 25°C	PD	2.0	W
	TA = 70°C		1.3
Operating Junction and Storage Temperature Range		TJ, Tstg	55 to 150	°C
