Features:

` Survives Ground Shorts and Transients on
Multiplexed Bus in Automotive and Industrial Applications
` Single Power Supply
` Compatible with Intel 82526 CAN Controller
` Direct Interface No External Components Required
` Automotive Temperature Range (40 to 125C)




Pinout

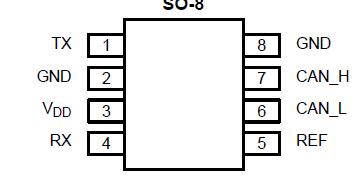

Connection Diagram




Specifications

Operating Temperature (TA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 125
Junction and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . -55 to 150
Voltage On Any Pin (Except CAN_H and CAN_L)
with Respect to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to VDD +0.3 V
Voltage On CAN_H and CAN_L
with Respect to Ground . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 3 to +16 V
Supply Voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 12 V
Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
Thermal Ratingsb: RJA . . . . . . . . . . . . . . . . . . . . . . . . . 62.5/W (no airflow)
Notes
a. Extended exposure to the absolute maximum ratings or stresses beyond
these ratings may affect device reliability or may cause permanent damage
to the device. Functional operation at conditions other than the recommended
operating conditions is not implied.
b. Mounted on 1-IN2, FR4 PC Board.




Description

The Si9200EY is designed to interface between the Intel 82526 CAN controller and the physical bus to provide drive capability to the bus and differential receive capability to the controller. It is designed to absorb typical electrical transients on the bus which may occur in an automotive or industrial application, and protect itself against any abnormal bus conditions. The transmitter will be disabled during these conditions and will be re-enabled when the abnormal condition is cleared.

The Si9200EY is built using the Siliconix BiC/DMOS process. This process supports CMOS, DMOS, and isolated bipolar transistors and uses an epitaxial layer to prevent latchup. The bus line pins are diode protected and can be driven beyond the VDD to ground range.

The Si9200EY is offered in the space efficient 8-pin
high-density surface-mount plastic package and is specified over the automotive temperature range (40 to 1250C).
