Si9104

PinoutSpecificationsVoltages Referenced to -VIN (VCC < +VIN + 0.3 V)VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V+VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 VVDS. . . . . . . . . . ...

product image

Si9104 Picture
See larger image
SeekIC No. : 004490880 Detail

Si9104: PinoutSpecificationsVoltages Referenced to -VIN (VCC < +VIN + 0.3 V)VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V+VIN . . . . . . . . . . ...

Si9104 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9104
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

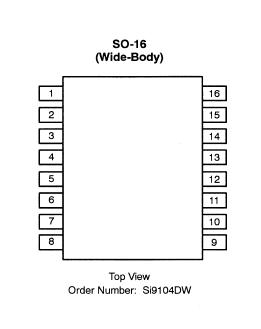

Connection Diagram




Specifications

Voltages Referenced to -VIN (VCC < +VIN + 0.3 V)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V
+VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 V
VDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V
ID (Peak) (300 ms pulse, 2% duty cycle). . . . . . . . . . . . . . . . . . . . . 2 A
ID (rms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250 mA
Logic Inputs (RESET, SHUTDOWN, OSC IN) . . -0.3 V to VCC + 0.3 V
Linear Inputs (FEEDBACK, SOURCE) . . . . . . . . . . . . . . -0.3 V to 7 V
HV Pre-Regulator Input Current (continuous) . . . . . . . . . . . . . . .3 mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 125°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . -40 to 85°C
Junction Temperature (TJ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Power Dissipation (Package)a
16-Pin Plastic Wide-Body SOICb . . . . . . . . . . . . . . . . . . . . . 900 mW
Thermal Impedance (JA)
16-Pin Plastic Wide-Body SOIC . . . . . . . . . . . . . . . . . . . . . . 140°C/W
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 7.2 mW/°C above 25°C.




Description

Si9104 datasheet

The Si9104 high-voltage switchmode regulator is a monolithic BiC/DMOS integrated circuit which contains most of the components necessary to implement a high-efficiency dc-todc converter up to 3 watts. It can either be operated from a low-voltage dc supply, or directly from a 10- to 120-V unregulated dc power source.

This Si9104 may be used with an appropriate transformer to implement most single-ended isolated power converter topologies (i.e., flyback and forward).

The Si9104 is available in a 16-pin wide-body SOIC and is specified over the D suffix (-40 to 85°C) temperature range.
