SZF2002

Features: ` Fully static 80C51 Central Processing Unit (CPU)` 8-bit CPU, ROM, RAM and I/O in a 80 lead LQFP package` 6-kbytes ROM program memory, expandable externally to 256 kbytes` 6144 + 256 bytes low power RAM data memory, expandable externally to 32 kbytes` Internal AUX RAM can be used for pr...

product image

SZF2002 Picture
See larger image
SeekIC No. : 004510728 Detail

SZF2002: Features: ` Fully static 80C51 Central Processing Unit (CPU)` 8-bit CPU, ROM, RAM and I/O in a 80 lead LQFP package` 6-kbytes ROM program memory, expandable externally to 256 kbytes` 6144 + 256 byte...

SZF2002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SZF2002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fully static 80C51 Central Processing Unit (CPU)
` 8-bit CPU, ROM, RAM and I/O in a 80 lead LQFP package
` 6-kbytes ROM program memory, expandable externally to 256 kbytes
` 6144 + 256 bytes low power RAM data memory, expandable externally to 32 kbytes
` Internal AUX RAM can be used for program execution (only in combination with internal ROM)
` Three 8-bit ports; 24 I/O lines
` Three 16-bit timer/event counters
` Flash Memory Interface optimized, with power saving and programming options
` Internal demultiplexing and latching of address/data bus to reduce system component count
` Interfaces to up to 256-kbyte Flash Memory (banked)
` Fifteen source, fifteen vector nested interrupt structure with two priority levels
` Full duplex serial port (UART)
` I2C-bus interface for serial transfer on two lines
` Analog-to-Digital Converter (ADC) with Power-down mode; 6 input channels and 8-bit ADC
` Pulse Width Modulated (PWM) output (8-bit resolution)
` Watchdog Timer
` Enhanced architecture with:
   Non-page oriented instructions
   Direct addressing
   Four 8-byte RAM register banks
   Stack depth limited only by available internal RAM (maximum 256 bytes)
   Multiply, divide, subtract and compare instructions
` Modes of reduced activity: Power-down and Idle modes
` Wake-up via external interrupts at INT0 to INT8
` Frequency range: up to 16 MHz (only limited by external memory and ADC performance)
` Supply voltage: 3.0 V
` Very low power consumption:
    operational 0.65 mW/MHz; Idle 0.25 mW/MHz at 3.0 V
` Operating temperature: -40 to +85 °C.


Application

The SZF2002 is an 8-bit general purpose microcontroller especially suited for wireless telephone and battery powered applications. The SZF2002 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities.




Pinout

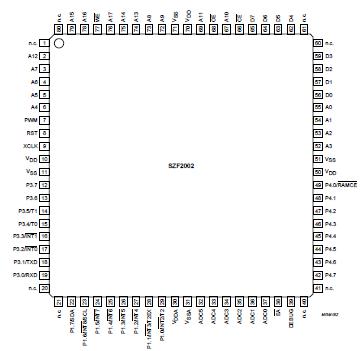

Connection Diagram


Specifications

SYMBOL PARAMETER
MIN.
MAX.
UNIT
VDD supply voltage
-0.5
+5
V
VI input voltage on any pin with respect to ground (VSS)
-0.5
VDD+0.5
V
II and IO DC current on any input or output
-
tbf
mA
Ptot total power dissipation
-
500
mW
Tstg storage temperature
-65
+150
Tamb operating ambient temperature
-40
+85
Tj operating junction temperature
-40
+125



Description

The SZF2002 low power system controller is manufactured in an advanced 0.5 mm CMOS technology. The instruction set of the SZF2002 is based on that of the 80C51 and consists of over 100 instructions: 49 one-byte,46 two-byte, and 16 three-byte. The device has low power consumption and two software selectable modes for power reduction: Idle and Power-down.

This data sheet details the specific properties of the SZF2002; for details of the 80C51 core and peripheral functions such as timers, UART and I/O, see "Data Handbook IC20". For the I2C-bus refer to "The I2C-bus and how to use it", ordering number 9398 393 40011.
