SY87701V

Features: 3.3V and 5V power supply options Clock and data recovery from 32Mbps up to 1.25Gbps NRZ data stream Complies with Bellcore, ITU/CCITT and ANSI specifications for applications such as OC-1, OC-3, OC-12, ATM, FDDI, etc. Two on-chip PLLs: one for clock generation and another for clock recov...

product image

SY87701V Picture
See larger image
SeekIC No. : 004510235 Detail

SY87701V: Features: 3.3V and 5V power supply options Clock and data recovery from 32Mbps up to 1.25Gbps NRZ data stream Complies with Bellcore, ITU/CCITT and ANSI specifications for applications such as OC-1,...

SY87701V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY87701V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 3.3V and 5V power supply options
Clock and data recovery from 32Mbps up to 1.25Gbps NRZ data stream
Complies with Bellcore, ITU/CCITT and ANSI specifications for applications such as OC-1, OC-3,
       OC-12, ATM, FDDI, etc.
Two on-chip PLLs: one for clock generation and another for clock recovery
Selectable reference frequencies
Differential PECL high-speed serial I/O
Line receiver input: no external buffering needed
Link fault indication
100K ECL compatible I/O
Available in 28-pin SOIC and 32-pin EP-TQFP packages


Application

SONET/SDH/ATM OC-1, OC-3, OC-12, OC-24
Fibre Channel, Escon
Gigabit Ethernet/Fast Ethernet
Proprietary architecture up to 1.25Gbps


Pinout

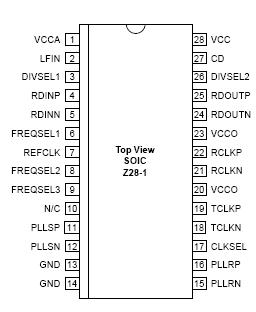

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Power Supply 0.5 to +7.0 V
VI Input Voltage 0.5 to VCC V
IOUT ECL Output Current
          - Continuous
          - Surge		 50
100		 mA
Tstore Storage Temperature 65 to +150 °C
TA Operating Temperature 0 to +85 °C
JA Thermal Resistance
@still air		 80 single
air layer board,
46 multi-layer		 °C/W



Description

The SY87701V is a complete Clock Recovery and Data Retiming integrated circuit for data rates from 32Mbps up to 1.25Gbps NRZ. The device is ideally suited for SONET/SDH/ATM and Fibre Channel applications and other high-speed data transmission systems.

Clock recovery and data retiming is performed by synchronizing the on-chip VCO directly to the incoming data stream. The VCO center frequency is controlled by the reference clock frequency and the selected divide ratio. On-chip clock generation is performed through the use of a frequency multiplier PLL with a byte rate source as reference.The SY87701V also includes a link fault detection circuit.
