Product Details

Description

Features:

Integral TTL Driver
Low DC Power Consumption
Surface Mount Package
Low Cost/High Performance
50 Ohm Nominal Impedance

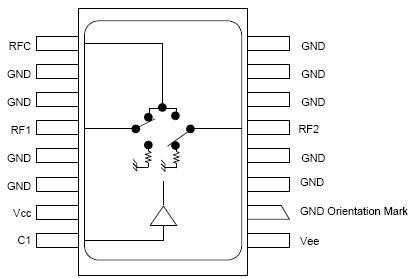

Pinout

Connection Diagram

Specifications

Parameter	Absolute Maximum
Max Input Power 50 MHz 500 - 2000 MHz	+27 dBm +34 dBm
Supply Voltages Vcc Vee	+5.5V -8.5V
Control Voltage 4	-0.5V, to Vcc +0.5V
Operating Temperature	-40°C to +125°C
Storage Temperature	-65°C to +150°C

Description

M/A-COM's SW10-0313 is a GaAs FET SPDT absorptive switch with integral silicon ASIC driver. Packaged in a 16-lead ceramic surface mount package, this device offers excellent performance and repeatability from DC to 3 GHz while maintaining low power consumption. The SW10-0313 is ideally suited for use where fast speed, low power consumption and broadband applications are required.
