Product Details

Description



Features:

 Integral TTL Driver
 Low DC Power Consumption
 Surface Mount Package
 Low Cost/High Performance
 50 Ohm Nominal Impedance


Pinout

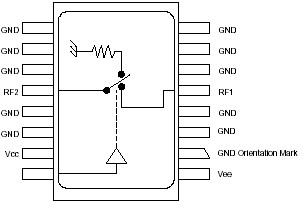

Connection Diagram


Specifications

Parameter
Absolute Maximum

Max Input Power
50 MHz
500 - 2000 MHz

+27 dBm
+34 dBm

Supply Voltages
Vcc
Vee


+5.5V
-8.5V

Control Voltage 4
-0.5V, to Vcc +0.5V
Operating Temperature
-55°C to +125°C
Storage Temperature
-65°C to +150°C

3. Operation of this device above any one of these parameters may cause permanent damage.
4. Standard CMOS TTL interface, latch-up will occur if logic signal is applied prior to power supply.


Description

M/A-COM's SW05-0311 is a GaAs FET SPST absorptive switch with integral silicon ASIC driver. Packaged in a 16-lead ceramic surface mount package, this device offers excellent performance and repeatability from DC to 3 GHz while maintaining low power consumption. The SW05-0311 is ideally suited for use where fast speed, low power consumption and broadband applications are required.
