STV102

Features:

·3D motion adaptive de-interlacing
·Motion adaptive noise reduction
·Programmable parametric non-linear scaling
·Movie mode support
·Non-linear programmable 16:9 expansion
·Color transient improvement, provides sharper color transition
·Dynamic peaking filter that greatly compensates the high frequency input
·PIP support with arbitrary location and size

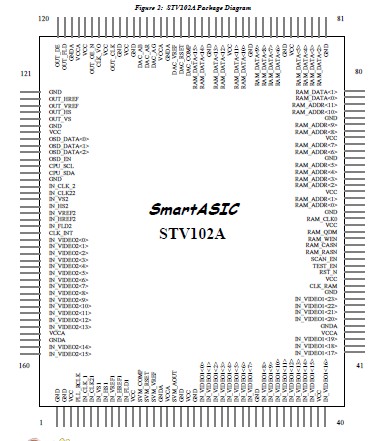

Pinout




Specifications

Symbol	Parameter	Rating	Units
VCC	Power Supply	-0.3 to 3.6	V
Vin	Input Voltage	-0.3 to VCC + 0.3	V
Vout	Output Voltage	-0.3 to VCC + 0.3	V
VCC5	Power Supply for 5V	-0.3 to 6.0	V
Vin5	Input Voltage for 5V	0.3 to VCC5 +0.3	V
Vout5	Output Voltage for 5V	0.3 to VCC5 +0.3	V
TSTG	Storage Temperature	-55 to 150	°C

Description

The STV102 has the following major function blocks:
· Channel inputs
· Picture in picture/Picture scan
· SDRAM controller
· De-interlacing
· Noise reduction
· Dynamic peaking filter/Black-Level Expander
· Color transient improvement
· Post processing
· Output formatting
The following sections will describe the functionality of these blocks
