Features:

 LOW VOLTAGE POWER SUPPLY DOWN TO 3V
8 CONSTANT CURRENT OUTPUT CHANNELS
ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR
SERIAL DATA IN/PARALLEL DATA OUT
SERIAL OUT CHANGES STATE ON THE FAILING EDGES OF CLOCK
3.3V MICRO DRIVER-ABLE
OUTPUT CURRENT: 15-90 mA
25 MHz CLOCK FREQ.
AVAILABLE IN HIGH THERMAL EFFICIENCY TSSOP EXPOSED PAD


Pinout

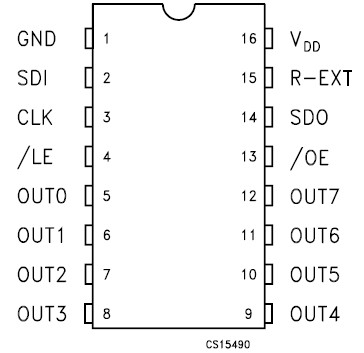

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD Supply Voltage 0 to 7 V
VO Output Voltage -0.5 to 16 V
IO Output Current 90 mA
VI Input Voltage -0.4 to VDD+0.4 V
IGND GND Terminal Current 720 mA
fCLK Clock Frequency 25 MHz
TOPR Operating Temperature Range -40 to +125
TSTG Storage Temperature Range -65 to +150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.




Description

The STP08CL596 is a monolithic, medium-voltage,low current power 8-bit shift register designed for LED panel display.

The STP08CL596 contains a 8-bit serial-in,parallel-out shift register that feeds a 8-bitD-type storage register. In the output stage, sixteen regulated current sources were designed to provide 15-90mA constant current to drive the LEDs.


Compared with the STPIC6C595, the device provides great flexibility and improved performance in LED panel system design.Trough an external resistor, users may adjust the STP08CL596 output current, controlling in this way the light intensity of LEDs.

The STP08CL596 guarantees 16V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 25 MHz, also satisfies the system requirement of high volume data transmission. The 3.3V of voltage supply is well useful for applications that interface any micro from 3.3V to 5.5V. Compared with a standard TSSOP package, the TSSOP exposed pad increases heat dissipation capability by a 2.5 factor.
