STMUX1000L

Features: LOW RON: 5.5 TYPICALVCC OPERATING RANGE: 3.0 TO 3.6 VLOW CURRENT CONSUMPTION: 20 AESD HBM MODEL: > 2 KVCHANNEL ON CAPACITANCE: 7.5 pF TYPICALSWITCHING TIME SPEED: 9 nsNEAR TO ZERO PROPAGATION DELAY:250 psVERY LOW CROSS TALK: -40 dB AT 250MHzBIT TO BIT SKEW: 200 ps> 450 MHZ -3db TY...

product image

STMUX1000L Picture
See larger image
SeekIC No. : 004508270 Detail

STMUX1000L: Features: LOW RON: 5.5 TYPICALVCC OPERATING RANGE: 3.0 TO 3.6 VLOW CURRENT CONSUMPTION: 20 AESD HBM MODEL: > 2 KVCHANNEL ON CAPACITANCE: 7.5 pF TYPICALSWITCHING TIME SPEED: 9 nsNEAR TO ZERO PROP...

STMUX1000L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STMUX1000L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

LOW RON: 5.5 TYPICAL
VCC OPERATING RANGE: 3.0 TO 3.6 V
LOW CURRENT CONSUMPTION: 20 A
ESD HBM MODEL: > 2 KV
CHANNEL ON CAPACITANCE: 7.5 pF TYPICAL
SWITCHING TIME SPEED: 9 ns
NEAR TO ZERO PROPAGATION DELAY:250 ps
VERY LOW CROSS TALK: -40 dB AT 250MHz
BIT TO BIT SKEW: 200 ps
> 450 MHZ -3db TYPICAL BANDWIDTH
THREE SWITCH S.P.D.T FOR LED SUPPORTING
PACKAGE: QFN56
Pb FREE


Pinout

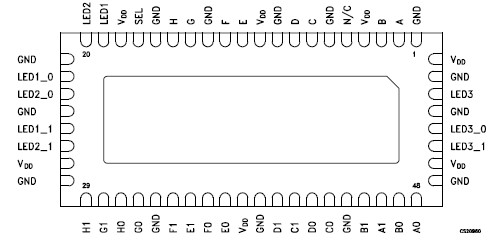

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage to Ground -0.5 to 4 V
VI DC Input Voltage -0.5 to 4 V
VIC DC Control Input Voltage -0.5 to 4 V
IO DC Output Current (*) 120 mA
PD Power Dissipation 0.5 W
Tstg Storage Temperature -65 to 150 °C
TL Lead Temperature (10 sec) 300 °C

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied.
(*) If not exceed the max limit of PD.




Description

The STMUX1000L is a 16 to 8 Bit multiplexer/demultiplexer low RON bidirectional LAN Switch designed for various standard, such as 10/100/1000 Ethernet.

STMUX1000L is designed for very low Cross Talk, low bit to bit skew and low I/O capacitance.


The differential signal from the Gigabit Ethernet Transceiver is multiplexed in one of two selected output while the unselected switch go to Hi-Z status.


The STMUX1000L integrates three 16 switches,S.P.D.T. (Single Pole Dual Throw Channel), for LED supporting.
