STABP01: Audio DSPs BASH Digital Procsr

STABP01 Data Sheet

Get Latest Price

Part Number:: STABP01
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Operating Temperature Range :	- 40 C to + 85 C	Mounting Style :	Through Hole
Package / Case :	PDIP-20	Packaging :	Tube

Description

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Operating Temperature Range : - 40 C to + 85 C
Mounting Style : Through Hole
Package / Case : PDIP-20

Features:

· BASH® LICENCE REQUIRED

Pinout

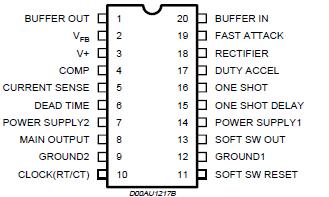

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage	10.5	V
I_O	Output Current	±0.6	A
E_O	Output Energy(capacitive load)	5	J
V_i	Analog Input Voltage	-0.3 to 8	V
I_O	Error Amplifier Output Sink Current	10	mA
P_tot	Power Dissipation at Tamb	500	mW
T_stg	Storage Ambient Temperature	-65 to 150
T_L	Lead Temperature (soldering 10s)	300
T_OP	Operating Temperature Range	-25 to 85

Description

The STABP01 processor is used to control the BASH® Digital Converter. When used in conjunction with BASH® amplifiers a fully integrated high efficiency power amplifier is realized.

By analyzing the audio input, the Processor determines the appropriate on/off events and generates a digital pulse for the Digital Converter. The converter of the STABP01 turns this pulse into a power signal that feeds the power amplifier. The feedback system allows the processor to constantly adapt to the audio signal and regenerate the digital pulse thereby maintaining a constant voltage across the output devices.

Parameters:

Technical/Catalog Information	STABP01
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Through Hole
Package / Case	20-DIP (300 mil)
Type	Audio Processor
Packaging	Tube
Applications	-
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	STABP01 STABP01 497 3951 5 ND 49739515ND 497-3951-5
