STA500

Audio Amplifiers Quad Pwr Half Bridge

product image

STA500 Picture
SeekIC No. : 00309512 Detail

STA500: Audio Amplifiers Quad Pwr Half Bridge

floor Price/Ceiling Price

Part Number:
STA500
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Type : 1-Channel Mono or 2-Channel Stereo
Operating Supply Voltage : 12 V, 15 V, 18 V, 24 V, 28 V Supply Current : 80 mA
Maximum Operating Temperature : + 70 C Mounting Style : SMD/SMT
Package / Case : PowerSO-36 Packaging : Tube

Description

Available Set Gain :
Common Mode Rejection Ratio (Min) :
THD plus Noise :
Output Power :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 70 C
Product : Class-AB
Output Type : 1-Channel Mono or 2-Channel Stereo
Operating Supply Voltage : 12 V, 15 V, 18 V, 24 V, 28 V
Supply Current : 80 mA
Package / Case : PowerSO-36


Features:

 `  MINIMUM INPUT OUTPUT PULSE WIDTH DISTORTION
 `  200m RdsON COMPLEMENTARY DMOS OUTPUT STAGE
 `  CMOS COMPATIBLE LOGIC INPUTS
 `  THERMAL PROTECTION
 `  THERMAL WARNING OUTPUT
 `  OVERVOLTAGE, UNDERVOLTAGE PROTECTION

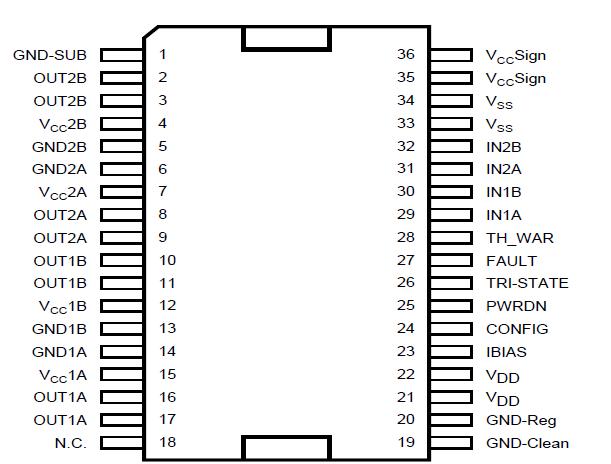

Pinout

  Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCE DC Supply Voltage (Pin 4,7,12,15)
40
V
Vmax Maximum Voltage on pins (23 to 32)
5.5
V
Top Operating Temperature Range
0 to 70
Tstg, Tj Storage and Junction Temperature
-40 to 150



Description

STA500 is a monolithic quad half bridge stage in Multipower BCD Technology. The device can be used as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability.

The STA500 is particulary designed to make the output stage of a stereo All-Digital High Efficiency (DDX™) amplifier capable to deliver 30 + 30W output power on 8 load and 60W on 8 load in bridge BTL configuration or mono 60W on 4 load. The input pins have threshold proportional to Ibias pin voltage.




Parameters:

Technical/Catalog InformationSTA500
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CasePowerSO-36 Exposed Bottom Pad
TypeClass D
Output Type2-Channel (Stereo) or 4-Channel (Quad)
Voltage - Supply10 V ~ 36 V
PackagingTube
FeaturesShort-Circuit and Thermal Protection
Max Output Power x Channels @ Load60W x 2 @ 8 Ohm
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STA500
STA500
497 3947 5 ND
49739475ND
497-3947-5
