STA014T Selling Leads, Price trend, STA014T DataSheet download, circuit diagram from SeekIC.com

Features: · SINGLE CHIP MPEG2 LAYER 3 DECODER SUPPORTING: - All features specified for Layer III in ISO/IEC 11172-3 (MPEG 1 Audio) -All features specified for Layer III in ISO/IEC 13818-3.2 (MPEG 2 Audio) - Lower sampling frequencies syntax extension, (not specified by ISO) called MPEG 2.5· DECODE...

See larger image

SeekIC No. : 004506948 Detail

STA014T: Features: · SINGLE CHIP MPEG2 LAYER 3 DECODER SUPPORTING: - All features specified for Layer III in ISO/IEC 11172-3 (MPEG 1 Audio) -All features specified for Layer III in ISO/IEC 13818-3.2 (MPEG 2 ...

STA014T Data Sheet

Get Latest Price

Part Number:: STA014T
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

· SINGLE CHIP MPEG2 LAYER 3 DECODER SUPPORTING:
   - All features specified for Layer III in ISO/IEC 11172-3 (MPEG 1 Audio)
   - All features specified for Layer III in ISO/IEC 13818-3.2 (MPEG 2 Audio)
   - Lower sampling frequencies syntax extension, (not specified by ISO) called MPEG 2.5
· DECODES LAYER III STEREO CHANNELS,DUAL CHANNEL, SINGLE CHANNEL (MONO)
· SUPPORTING ALL THE MPEG 1 & 2 SAMPLING FREQUENCIES AND THE EXTENSION TO MPEG 2.5: 48, 44.1, 32, 24, 22.05, 16, 12, 11. 025, 8 KHz
· ACCEPTS MPEG 2.5 LAYER III ELEMENTARY COMPRESSED BITSTREAM WITH DATA RATE FROM 8 Kbit/s UP TO 320 Kbit/s
· ADPCM CODEC CAPABILITIES:
   - sample frequency from 8 kHz to 32 kHz
   - sample size from 8 bits to 32 bits
   - encoding algorithm: DVI,ITU-G726 pack (G723-24, G721,G723-40)
   - Tone control and fast-forward capability
· SRS WOW⁽¹⁾ TECHNOLOGY CAN BE USED AS POSTPROCESSING. SUPPORT FOR DIFFERENT SPEAKERS TYPES:
   - headphone
   - medium
   - large
· WOW⁽¹⁾ TRUEBASS AND FOCUS CAN BE INDIPENDENTLY ADJUSTED
· EASY PROGRAMMABLE GPSO INTERFACE FOR ENCODED DATA UP TO 5Mbit/s (TQFP44 & LFBGA 64)
· DIGITAL VOLUME
· BASS & TREBLE CONTROL
· SERIAL BITSTREAM INPUT INTERFACE
· EASY PROGRAMMABLE ADC INPUT INTERFACE
· ANCILLARY DATA EXTRACTION VIA I2C INTERFACE.
· SERIAL PCM OUTPUT INTERFACE (I²S AND OTHER FORMATS)
· PLL FOR INTERNAL CLOCK AND FOR OUTPUT PCM CLOCK GENERATION
· CRC CHECK AND SYNCHRONISATION ERROR DETECTION WITH SOFTWARE INDICATORS
· I²C CONTROL BUS
· LOW POWER 2.4V CMOS TECHNOLOGY
· WIDE RANGE OF EXTERNAL CRYSTALS FREQUENCIES SUPPORTED

Application

· PC SOUND CARDS
· MULTIMEDIA PLAYERS
· VOICE RECORDERS

Pinout

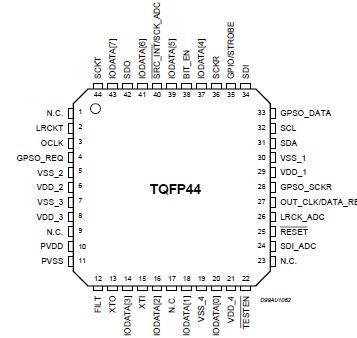

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	Power Supply	-0.3 to 4	V
V_i	Voltage on input pins	-0.3 to V_DD+0.3	V
V_O	Voltage on output pins	-0.3 to V_DD+0.3	V
T_stg	Storage Temperature	-40 to 150
T_oper	Operative ambient temp	-25 to 85

Description

The STA014T is a fully integrated high flexibility MPEG Layer III Audio Decoder, capable of decoding Layer III compressed elementary streams, as specified in MPEG 1 and MPEG 2 ISO standards. The device decodes also elementary streams compressed by using low sampling rates, as specified by MPEG 2.5. STA014 receives the input data through a Serial Input Interface. The decoded signal of the STA014T is a stereo, mono, or dual channel digital output that can be sent directly to a D/A converter, by the PCM Output Interface. This interface is software programmable to adapt the STA014T digital output to the most common DACs architectures used on the market. The functional STA014 chip partitioning is described in Fig.1a and Fig.1b.
