ST8016

Features: ·Number of LCD drive outputs: 160·Supply voltage for LCD drive: +15.0 to +40.0 V·Supply voltage for the logic system: +2.5 to +5.5 V·Low power consumption·Low output impedance Package: 186-pin TCP (Tape Carrier Package) (Segment mode)·Shift clock frequency - 20 MHz (MAX.): VDD = +5.0 ± 0...

product image

ST8016 Picture
SeekIC No. : 004506864 Detail

ST8016: Features: ·Number of LCD drive outputs: 160·Supply voltage for LCD drive: +15.0 to +40.0 V·Supply voltage for the logic system: +2.5 to +5.5 V·Low power consumption·Low output impedance Package: 186...

floor Price/Ceiling Price

Part Number:
ST8016
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Number of LCD drive outputs: 160
·Supply voltage for LCD drive: +15.0 to +40.0 V
·Supply voltage for the logic system: +2.5 to +5.5 V
·Low power consumption
·Low output impedance Package: 186-pin TCP (Tape Carrier Package) (Segment mode)
·Shift clock frequency - 20 MHz (MAX.): VDD = +5.0 ± 0.5 V - 15 MHz (MAX.): VDD = +3.0 to + 4.5 V - 12 MHz (MAX.): VDD = +2.5 to + 3.0 V
·Adopts a data bus system
·4-bit/8-bit parallel input modes are selectable with a mode (MD) pin
·Automatic transfer function of an enable signal
·Automatic counting function which, in the chip selection mode, causes the internal clock to be stopped by automatically counting 160 bits of input data
·Line latch circuits are reset when DISPOFF active (Common mode)
·Shift clock frequency: 4 MHz (MAX.)
·Built-in 160-bit bi-directional shift register (divisible into 80 bits x 2)
·Available in a single mode (160-bit shift register) or in a dual mode (80-bit shift register x 2)
·Y1->Y160 Single mode
·Y160->Y1 Single mode
·Y1->Y80, Y81->Y160 Dual mode
·Y160->Y81, Y80->Y1 Dual mode The above 4 shift directions are pin-selectable
·Shift register circuits are reset when DISPOFF active




Pinout

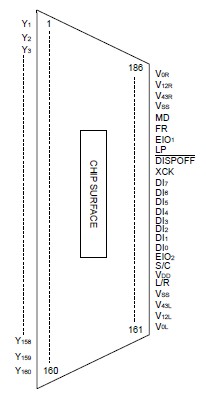

  Connection Diagram


Description

The ST8016 is a 160-output segment/common driver IC suitable for driving large/medium scale dot matrix LCD panels, and is used in personal computers/work stations. Through the use of SST (Super Slim TCP) technology, it is ideal for substantially decreasing the size of the frame section of the LCD module. The ST8016 is good both as a segment driver and a common driver, and it can create a low power consuming, high-resolution LCD.
