Product Details

Description

Pinout

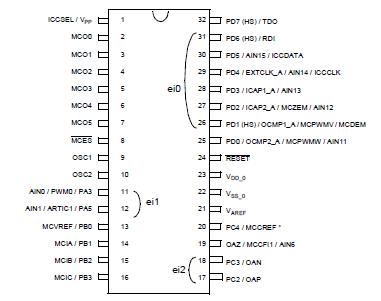

Connection Diagram

Specifications

Symbol	Ratings	Maximum value	Unit
V_DD - V_SS	Supply voltage	6.5	V
V_PP - V_SS	Programming Voltage	13
V_IN	Input voltage on any pin 1) & 2)	V_SS-0.3 to V_DD+0.3
\|V_DDx\| and \|V_SSx\|	Variations between different digital power pins	50	mV
\|V_SSA - V_SSx\|	Variations between digital and analog ground pins	50	mV
V_ESD(HBM)	Electro-static discharge voltage (Human Body Model)	see section 11.7.3 on page 259
V_ESD(MM)	Electro-static discharge voltage (Machine Model)	see section 11.7.3 on page 259
