ST72F324

Features: Memories 8 to 32K dual voltage High Density Flash (HDFlash) or ROM with read-out protection capability.In-Application Programming and In-Circuit Programming for HDFlash devices 384 to 1K bytes RAM HDFlash endurance: 100 cycles, data retention:20 years at 55°CClock, Reset And Supply Manag...

product image

ST72F324 Picture
See larger image
SeekIC No. : 004506776 Detail

ST72F324: Features: Memories 8 to 32K dual voltage High Density Flash (HDFlash) or ROM with read-out protection capability.In-Application Programming and In-Circuit Programming for HDFlash devices 384 to 1K b...

ST72F324 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST72F324
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Memories
8 to 32K dual voltage High Density Flash (HDFlash) or ROM with read-out protection capability.In-Application Programming and In-Circuit Programming for HDFlash devices
384 to 1K bytes RAM
HDFlash endurance: 100 cycles, data retention:20 years at 55°C
 Clock, Reset And Supply Management
Enhanced low voltage supervisor (LVD) for main supply with programmable reset thresholds and auxiliary voltage detector (AVD) with interrupt capability
Clock sources: crystal/ceramic resonator oscillators,internal RC oscillator, clock security system and bypass for external clock
PLL for 2x frequency multiplication
Four Power Saving Modes: Halt, Active-Halt,Wait and Slow
 Interrupt Management
Nested interrupt controller
10 interrupt vectors plus TRAP and RESET
9/6 external interrupt lines (on 4 vectors)
 Up to 32 I/O Ports
32/24 multifunctional bidirectional I/O lines
22/17 alternate function lines
12/10 high sink outputs
 4 Timers
Main Clock Controller with: Real time base,Beep and Clock-out capabilities
Configurable watchdog timer
16-bit Timer A with: 1 input capture, 1 output compare, external clock input, PWM and pulse generator modes
16-bit Timer B with: 2 input captures, 2 output compares, PWM and pulse generator modes
 2 Communication Interfaces
SPI synchronous serial interface
SCI asynchronous serial interface
 1 Analog Peripheral (low current coupling)
10-bit ADC with up to 12 robust input ports
 Instruction Set
8-bit Data Manipulation
63 Basic Instructions
17 main Addressing Modes
8 x 8 Unsigned Multiply Instruction
 Development Tools
Full hardware/software development package
In-Circuit Testing capability

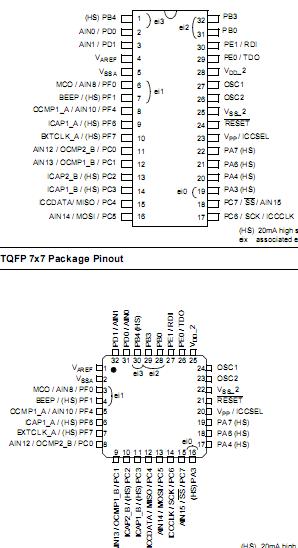

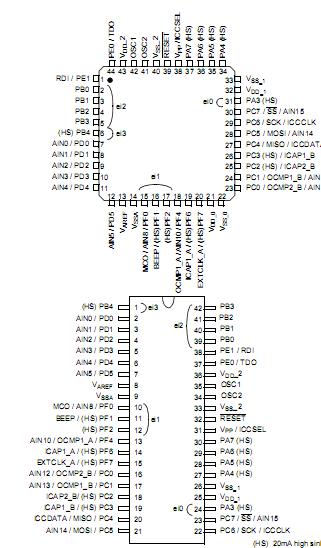

Pinout

Connection Diagram Connection Diagram


Specifications

Voltage Characteristics
Symbol Ratings Maximum value Unit
VDD - VSS Supply voltage 6.5 V
VPP - VSS Programming Voltage 13
VIN1) & 2) Input Voltage on true open drain pin VSS-0.3 to 6.5
Input voltage on any other pin VSS-0.3 to VDD+0.3
|∆VDDx| and |∆VSSx| Variations between different digital power pins 50 mV
|VSSA - VSSx|
Variations between digital and analog ground pins 		50
VESD(HBM) Electro-static discharge voltage (Human Body Model)
VESD(MM)
Electro-static discharge voltage (Machine Model)
Current Characteristics
Symbol Ratings Maximum value Unit
IVDD Total current into VDD power lines
(source) 3)
 32-pin devices 75 mA
44-pin devices 150
IVSS Total current out of VSS ground lines
(sink) for 3)
 32-pin devices 75 mA
44-pin devices 150
IIO Output current sunk by any standard I/O and control pin
25 mA
Output current sunk by any high sink I/O pin 50
Output current source by any I/Os and control pin - 25
IINJ(PIN)2) & 4) Injected current on VPP pin ± 5
Injected current on RESET pin when not driven low internally ± 5
Injected current on flash device pin PB0X ± 5
Injected current on OSC1 and OSC2 pins ± 5
Injected current on any other pin 5) & 6) ± 5
IINJ( 2) Total injected current (sum of all I/O and control pins) 5) ± 25
Thermal Characteristics
Symbol Ratings Value Unit
TSTG Storage temperature range -65 to +150 °C
TJ Maximum junction temperature
