Product Details

Description

Features:

OUTPUT VOLTAGE: 12V ± 5%
SUPPLY VOLTAGERANGE: 4.5V TO 5.5V
GUARANTEED OUTPUT CURRENT UP TO 30mA
VERY LOWQUIESCENT CURRENT: 100µA
LOGICCONTROLLED ELECTRONIC SHUTDOWN: 1µA
JUST CAPACITORS NEEDED (NOINDUCTOR)

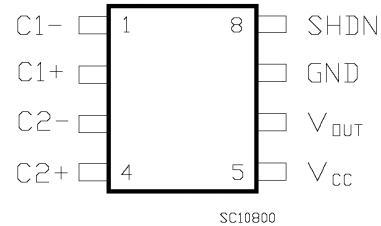

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Input Voltage to GND	-0.3 to 6	V
S_HDN	Shutdown Voltage	-0.3 to V_CC+0.3	V
I_o	OutputCurrent Continuous	50	mW
P_tot	Power Dissipation	500	mW
T_op	Operating Ambient Temperature Range (for AC SERIES) (for AB SERIES)	0to70 -40to85
T_stg	Storage Temperature Range	- 40 to 150

Description

The ST662A is a regulated charge pump DC-DC converter. It provides 12V ± 5% output voltage to programbyte-wide flash memory, and can supply 30mA output current from input as low as 4.75V A logic controlled shut down pin that interfaces directly with microprocessor reduces the sypply current to only 1µA
