ST3M01

Features: · ONLY TWO CELL NEED AS INPUT· THREE REGULATED OUTPUT1) HIGH EFFICENCY PFM DC/DC CONVERTER 3.3V AT 200mA (87% EFFICENCY) 2)VERY LOW NOISE AND VERY LOW DROP VREG (3V AT 20mA)3) VERY LOW NOISE AAND VERY LOW DROP VREG (1.9V AT 20mA)· LOGIC CONTROLLED ELECTRONICSHUTDOWN· LOW BATTERY DETECTOR...

product image

ST3M01 Picture
See larger image
SeekIC No. : 004506520 Detail

ST3M01: Features: · ONLY TWO CELL NEED AS INPUT· THREE REGULATED OUTPUT1) HIGH EFFICENCY PFM DC/DC CONVERTER 3.3V AT 200mA (87% EFFICENCY) 2)VERY LOW NOISE AND VERY LOW DROP VREG (3V AT 20mA)3) VERY LOW NOI...

ST3M01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST3M01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· ONLY TWO CELL NEED AS INPUT
· THREE REGULATED OUTPUT
  1) HIGH EFFICENCY PFM DC/DC   CONVERTER 3.3V AT 200mA (87%   EFFICENCY)
  2)VERY LOW NOISE AND VERY LOW   DROP VREG (3V AT 20mA)
  3) VERY LOW NOISE AAND VERY LOW   DROP VREG (1.9V  AT 20mA)
· LOGIC CONTROLLED ELECTRONIC  SHUTDOWN
· LOW BATTERY DETECTOR
· VIRTUAL GND PIN
· TEMPERATURA RANGE: -40 TO 85°C

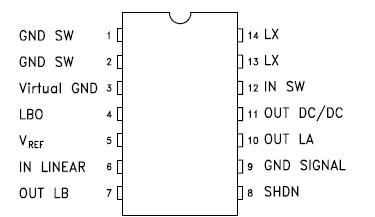

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VIN DC Input Voltage (Both IN_Linear and IN_SW)
-0.3 to 7
V
VSHDN Shutdown Input Voltage
-0.3 to VIN+0.3
V
VLX Switch Voltagel
-0.3 to 7
V
VLBO Low Battery Output Voltage
-0.3 to 7
V
Vvirtual_GND Virtual GND Output Voltage
-0.3 to 7
V
ILBO Low Battery Output Maximum Curren
30
mA
Ivirtual_GND Virtual GND Output Maximum Current
30
mA
Tstg Storage Temperature Range
-65 to +150
Top Operating Junction Temperature Range
-40 to +85
