SSTV16857

Supply Voltage (V_DDQ) ```````````````````````````````````````````````````` -0.5V to +3.6V
Supply Voltage (V<sub>DD</sub>) ````````````````````````````````````````````````````   -0.5V to +3.6V
Reference Voltage (V_REF) ``````````````````````````````````````````````   -0.5V to +3.6V
Input Voltage (V_I) ````````````````````````````````````````````````````-0.5V to V_DD + 0.5V
Output Voltage (V_O)
    Outputs Active (Note 2)   ```````````````````````````````````-0.5V to V_DDQ + 0.5V
DC Input Diode Current (I_IK)
    V_I < 0V   `````````````````````````````````````````````````````````````````````````````````-50 mA
    V<sub>I</sub> >V<sub>DD</sub>  `````````````````````````````````````````````````````````````````````````````````+50 mA
DC Output Diode Current (I_OK)
   V_O < 0V  ``````````````````````````````````````````````````````````````````````````````````-50 mA
   V_O >VDD `````````````````````````````````````````````````````````````````````````````````+50 mA
DC Output Source/Sink Current
(IOH/IOL) ````````````````````````````````````````````````````````````````````````````````````±50 mA
DC VDD or Ground Current
per Supply Pin (I_DD or Ground)``````````````````````````````````````````````````±100 mA
Storage Temperature Range (T_stg)`````````````````````````````````-65 to + 150

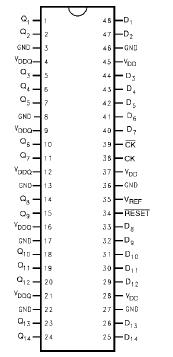

The SSTV16857 is a 14-bit register designed for use with 184 and 232 pin PC1600, 2100, and 2700 DDR DIMM applications. The SSTVN16857 is a 14-bit register designed for use with 184 and 232 pin PC3200 DDR DIMM applications. These devices have a differential input clock,SSTL-2 compatible data inputs and a LVCMOS compatible RESET input. These devices have been designed for compliance with the JEDEC DDR module and register specifications.

The SSTV16857 are fabricated on an advanced submicron CMOS process and are designed to operate at power supplies of less than 3.6V's.
